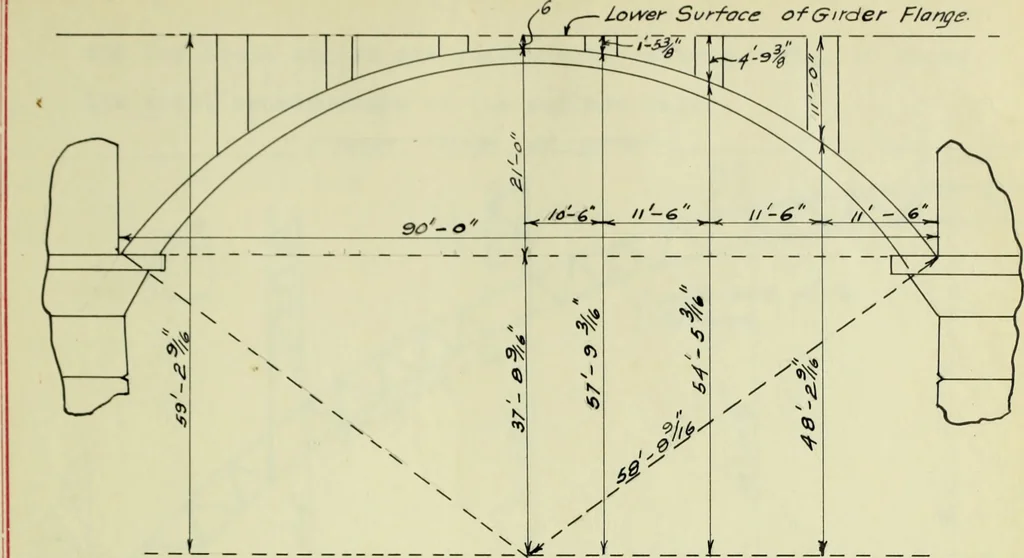

13 … Fig 9. Fitch ring. Inter mediate Span. The arch ring will now be investigated for strength.The angles used in its construction are the minimum sizeallowable under the specifications. The area of two angles3£x2£x5/l6w=2.94 square inches. The distance between theircenters of gravity is…
