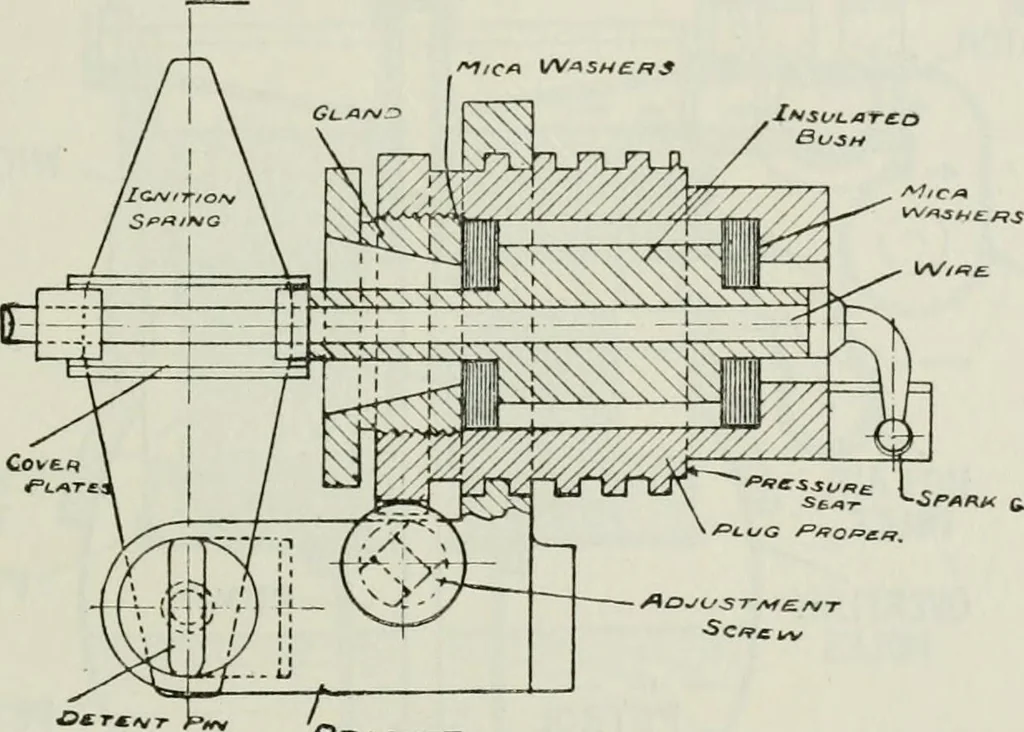

tically nomoment. The lubrication of the Lanchester engine is entirely auto-matic. All that the driver has to do is to see that the tank,which holds enough oil for about 150 miles run, is kept full.The action of the lubricator is shown in Fig. 5, the pistonsbeing lubricated by oil passing through… … FIG. 4. LANCHESTER SPARKING PLUG AND IGNITION SPRING intervals by a feed from the main tank, and discharges its con-tents to lubricate the counter-shaft. Lanchester motor-cars are at present fitted either with air-cooling or water-cooling. In the air-cooling arrangement,which is the original…
