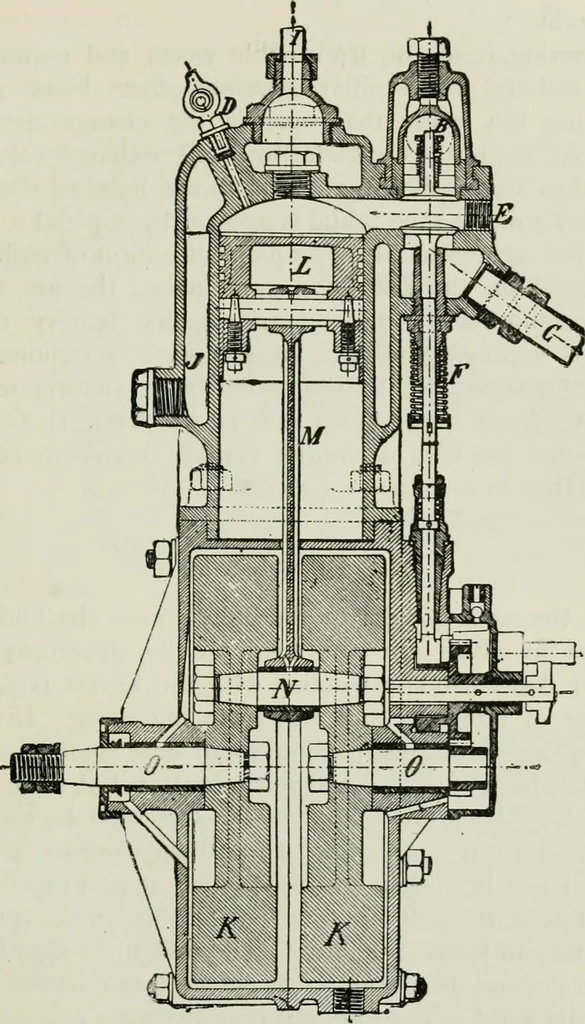

ositions of two of the clutch boxes are moved to bring thereverse drum over the clutch, which otherwise actuates the high-speed gear. The chief feature of the De Dion gear is that it isalmost impossible to injure it, or to cause a jar or jolt in the careven by the most careless and ignorant driver.… … DE DION 6 H.P. MOTOR, SECTIONAL VIEW A—Oil Outlet. B—Gas Inlet. C—Exhaust Outlet. D—Compression Tap. E—Sparking Plug-hole. F—Spring of E.vhaust Valve. I—Water Outlet. J—Water-jacket Plug.K K—Fly-wheels.L—Piston. M—Connecting Rod.N—A.xle connecting Fly-O O—Motor Axles. 196 THE COMPLETE MOTORIST…
