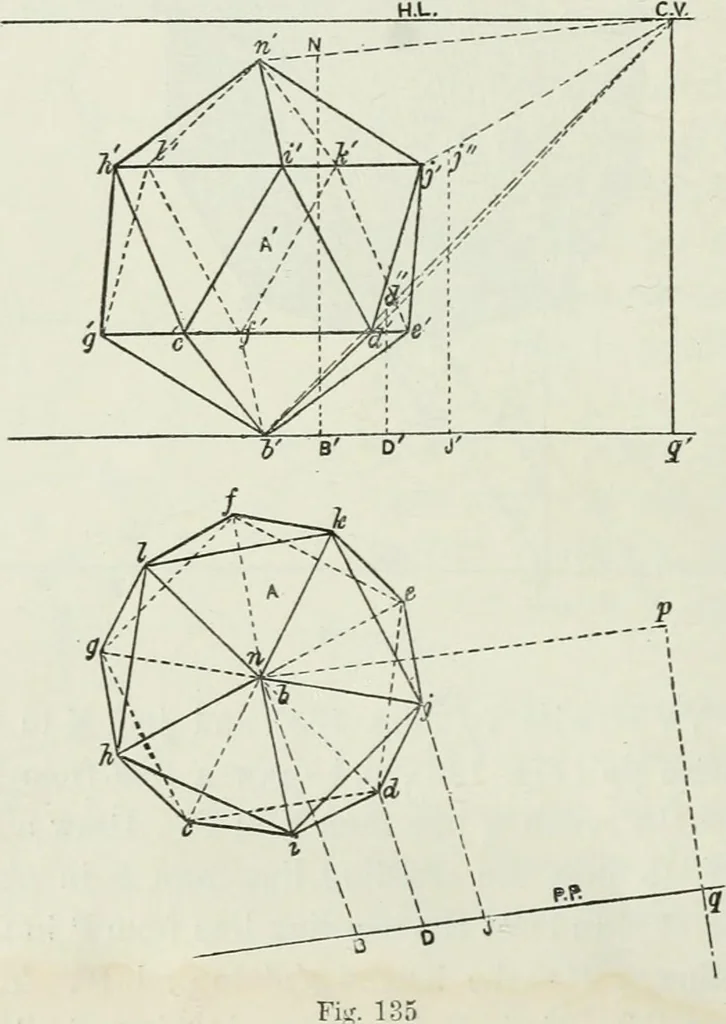

OMPLETE TERSPECTIVE COURSE Problem 68 Let A and A (Fig. 135) hr tlic jilan and elevation of a ieosa-hedron drawn to a scale of h ~ !• Draio tit is olijcrt inperspective to twice this sccde, the vertical axis, and thepoints c and k, to he in a rertica.l ^:>/a?ie inclined to theP.P. at an angle of… … 57, and produce the line till it is 3 long to find 2>. Draw aline from p at right angles to hp, 2 long, to find q. Drav; aline from g- parallel to hp, for the position of the P.P. in plan. SOLIDS IX COMPLEX POSITIONS 191 Set oft from q, on i-iq produced, 12, to find the station point.J )ra\v…
