Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 152

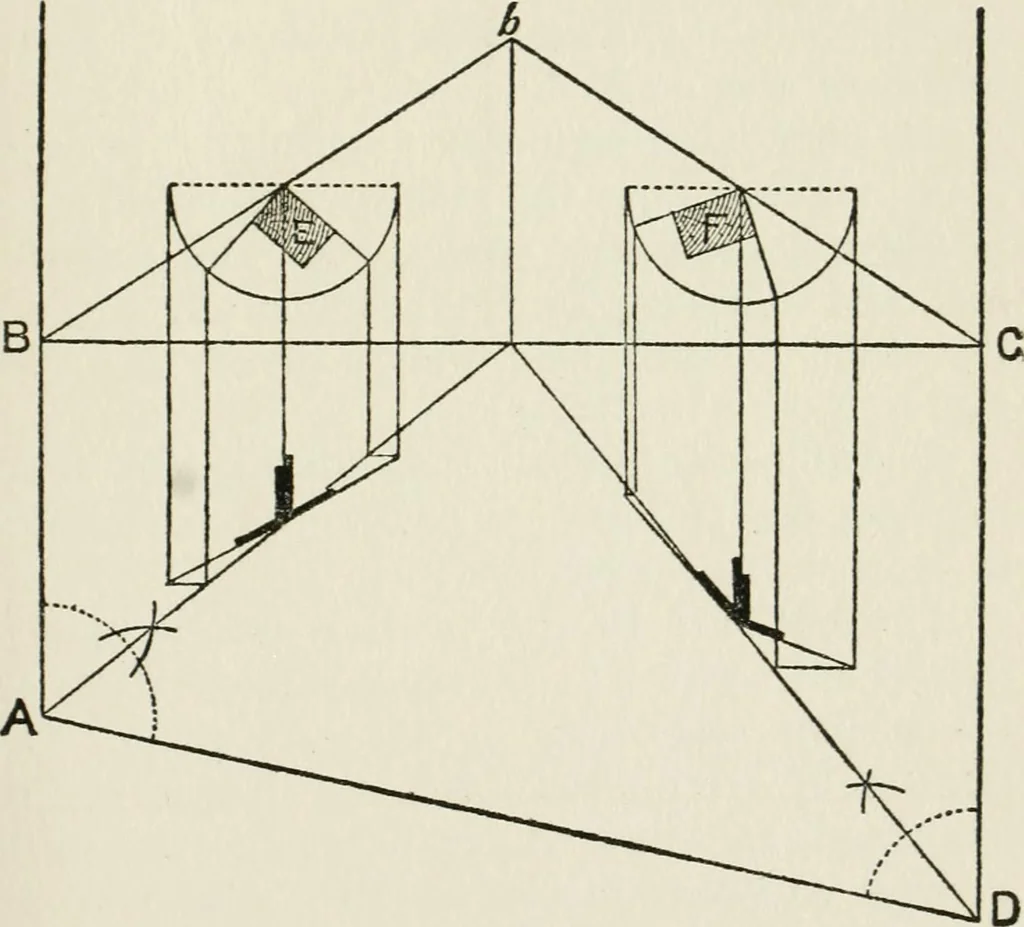

d,be, equal to the height of the roof be, and join Ae,Dd, for the lengths of the hip rafters. To findthe backing of the rafter: In Ae, take any PRACTICAL CARPENTRY 131 point k, and draw kh perpendicular to Ae.Through h draw fhg perpendicular to Ab, meet-ing AB, AD, in f and g. Make hi equal to… … FIG. 152 with any radius, describe the arc dg; and fromthe opposite extremities of the diameter draw dh,gm, perpendicular to BC. From e and f, where 132 PRACTICAL CARPENTRY the upper adjacent sides of the purHn producedcut the curve, draw ei, fl parallel to dh, gm; alsodraw ck parallel to dli. From…
Architecture · Building
