Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 94

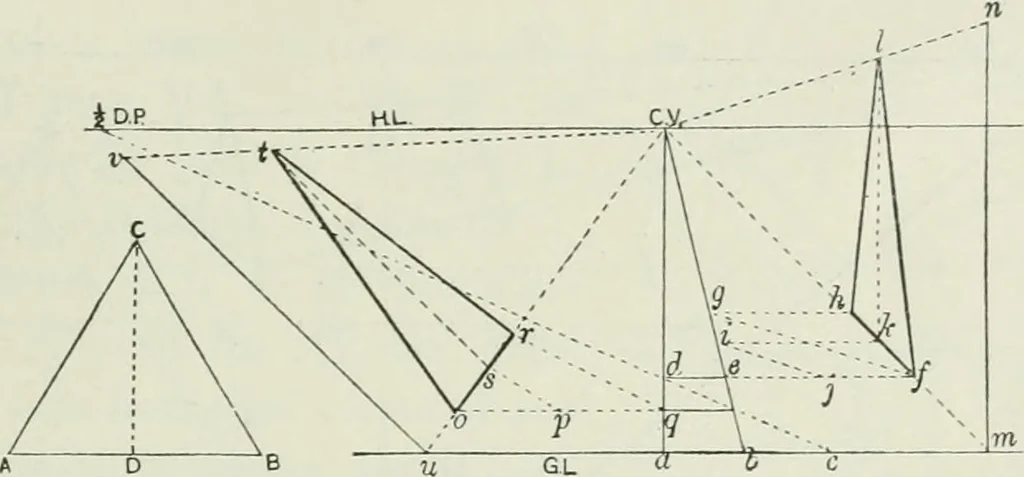

m/to | D.P. tomeet the receding line from e in g. As ef— 3, eg must equal 6.Draw a horizontal line from g to meet the receding line from/ in h. To find the centre of the line fh, bisect ef in j and draw j to IV TRIANGLES, POLYGONS, TRISMS, AND PYRAMIDS 71 h D.r. to meet er/ in i. Draw a horizontal… … Draw a vertical line m7i at m twice the height of DC.Draw n to C.V. cutting a perpendicular on Z; in /. Join Ih and//. Then fill is the triangle required, 2. Find the edge or, and bisect it perspectively in c; by themethod just described. Draw uv at an angle of 45^ with G.L. and equal in length…
Perspective
