A course in mechanical drawing for evening schools and self-instruction (1896)
Rouillion, Louis · Boston, New York, The Prang educational company · leaf 41

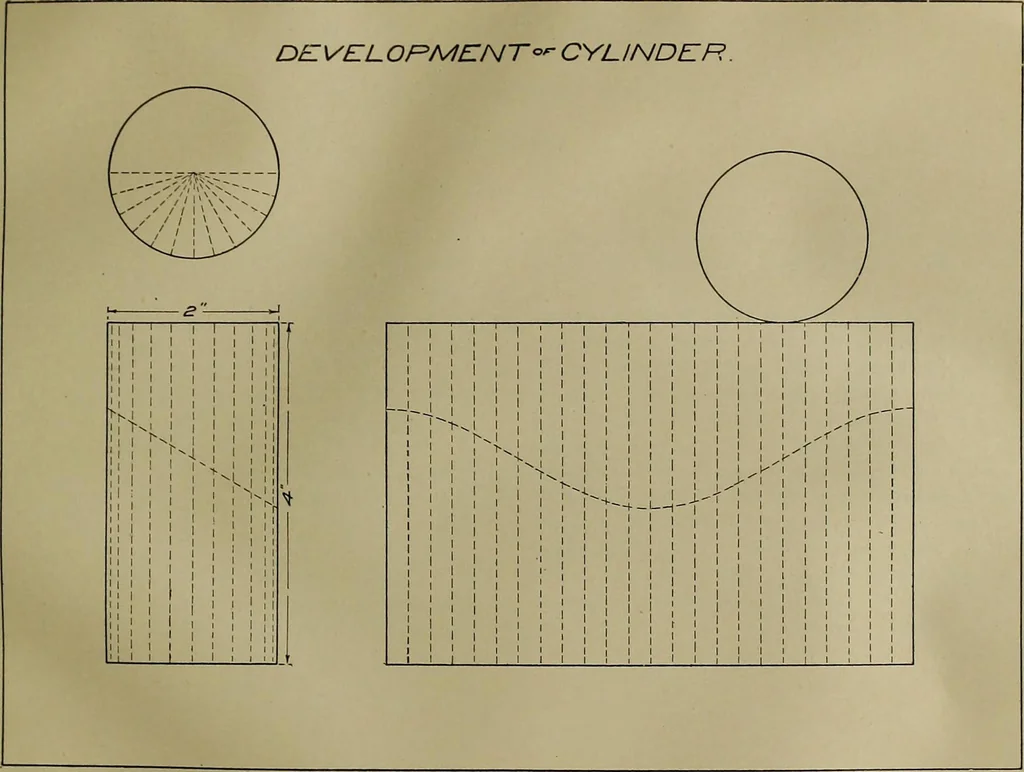

ext projected to thesecond element of the pattern, and so on till thecentre element of the pattern is reached. As the cutis the same at the back of the cylinder as in front,the right-hand side of the developed curve will beidentical with the part already found, only reversed.Draw the curve in… … 34 COURSE IN AIECFfANICAL DRAWING. SHEET XII. Development of Cone. Draw the top and front views of a cone having a2-inch base and an altitude of 4 inches, and developits surface. As in the case of the cylinder, divide the circum-ference in the top view into a number of equal partsand project these…
Mechanical drawing
