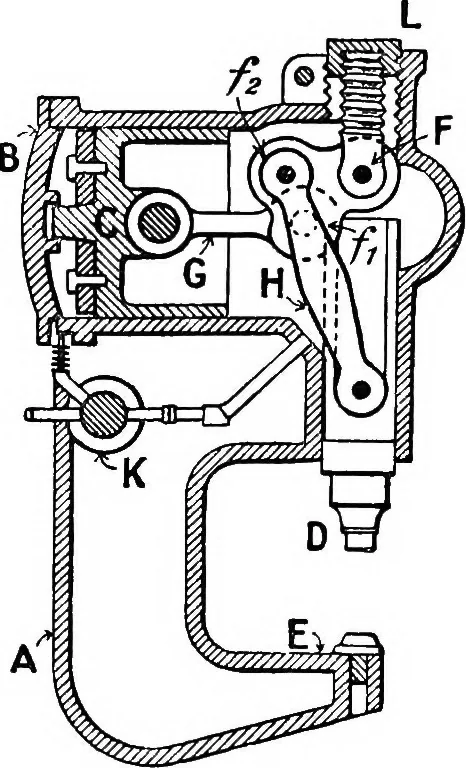

eated. As the piston 0moves to the right under the air-pressure, the turning moment on thebell-crank lever gradually increases,and the plunger die descends. As itnears the anvil die, the rod H and the arm/2 of the bell-crank lever become nearly in one line, so thatthe plunger die descends very… … Fig. 189. (82 MECHANISM. the high-pressure air and with the atmosphere by means of atwo-way cock at K. It will be noticed that the fulcrum F iscarried at the end of a spindle screwed into the cap L; and theobject of this arrangement is so that the fulcrum F may beadjusted in a vertical direction in…
