Poynting, J. H. (John Henry), 1852-1914, Shakespear, Gilbert Arden, ed, Barlow, Guy, joint ed · Cambridge, University Press · leaf 585

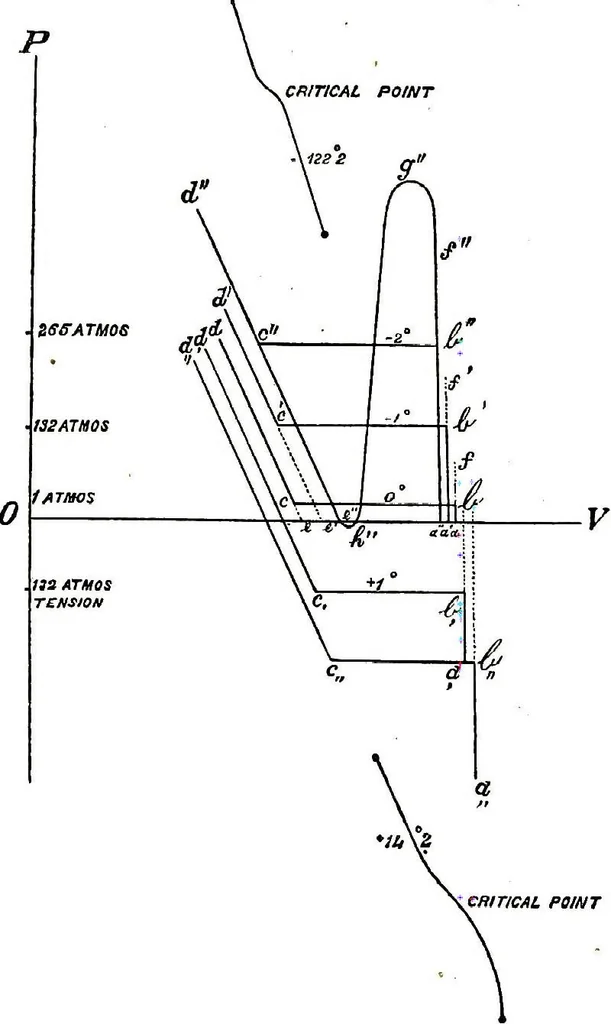

CATION 549 Intermediate states of the mixture of ice and water are represented by pointsalong the horizontal line be. Further compression of the water is representedby the almost vertical line cd. If we take ice at - 1°, its volume is less than at 0° as at a. We mustraise the pressure to 130… … eaiTICAL POINT Fig. 7. for the — 2° isothermal, abcd, bc is shghtly greater than bc, an<lso on. But we know that while ice below 0° contracts on coohng, water below0° expands at a rapidly increasing rate, and there is good reason to supposethat ultimately the horizontal part of the isothermal…
Poynting, J. H. (John Henry), 1852-1914 · Physics
