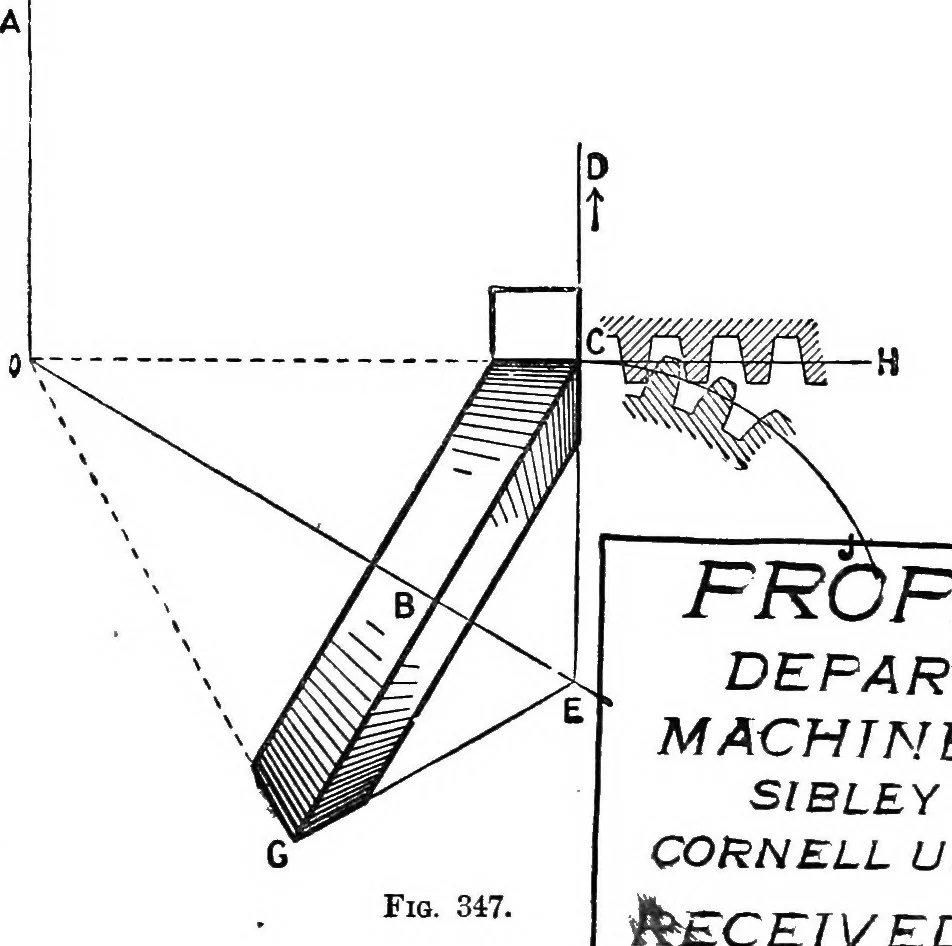

endicular axes,ia shown in Eig. 346. The problem is essentially,one of geometry,and further reference must be made to works on Design. § 190. Special Case : Crowa Wheel.—A special case of bevelwheels may be noticed. If the angle of one of the pitch cones—say the cone whose axis is OA—is 180°, one… … Fib. 347. FROPEF DEPARTMlMACHINE Dl SIBLEY SCHt.COfSNELL UNtVt [CETVED .^ long the arc CJ as before; and those for the crown wheel will»e <nven by the development along the rack OH. Hence, if the 3IO MECHANISM. teeth are involute teeth, the teeth of the rack will be straightlines. For the arc CJ…
