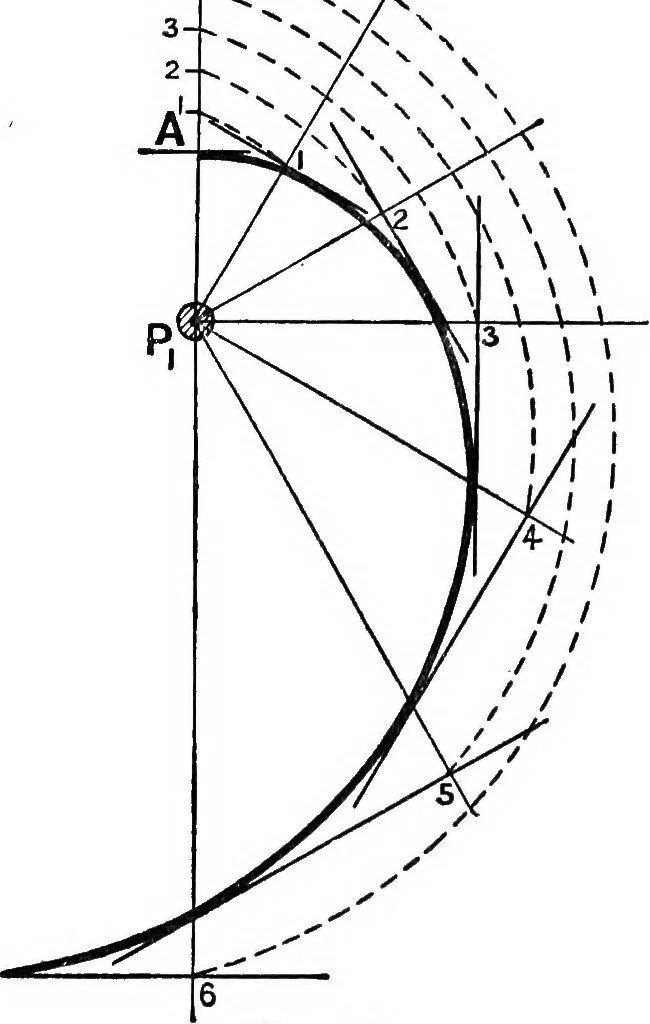

, theacting edge of the cam isobtained in the followingway. Instead of the camrotating, imagine (followingthe usual method) the re-ciprocating piece to rotateabout the cam centre, andto have, in addition, theuniform radial motion. Therelative motion is clearlyunaltered. If, therefore, the… … FiQ. 407. NON-CIRCULAR WHEELS. 367 other. Througli the points of subdivision of AB draw circularaxes to intersect the corresponding radiating lines; and throughthe points of intersection draw lines perpendicular to the radii torepresent the successive relative positions of the plane face of…
