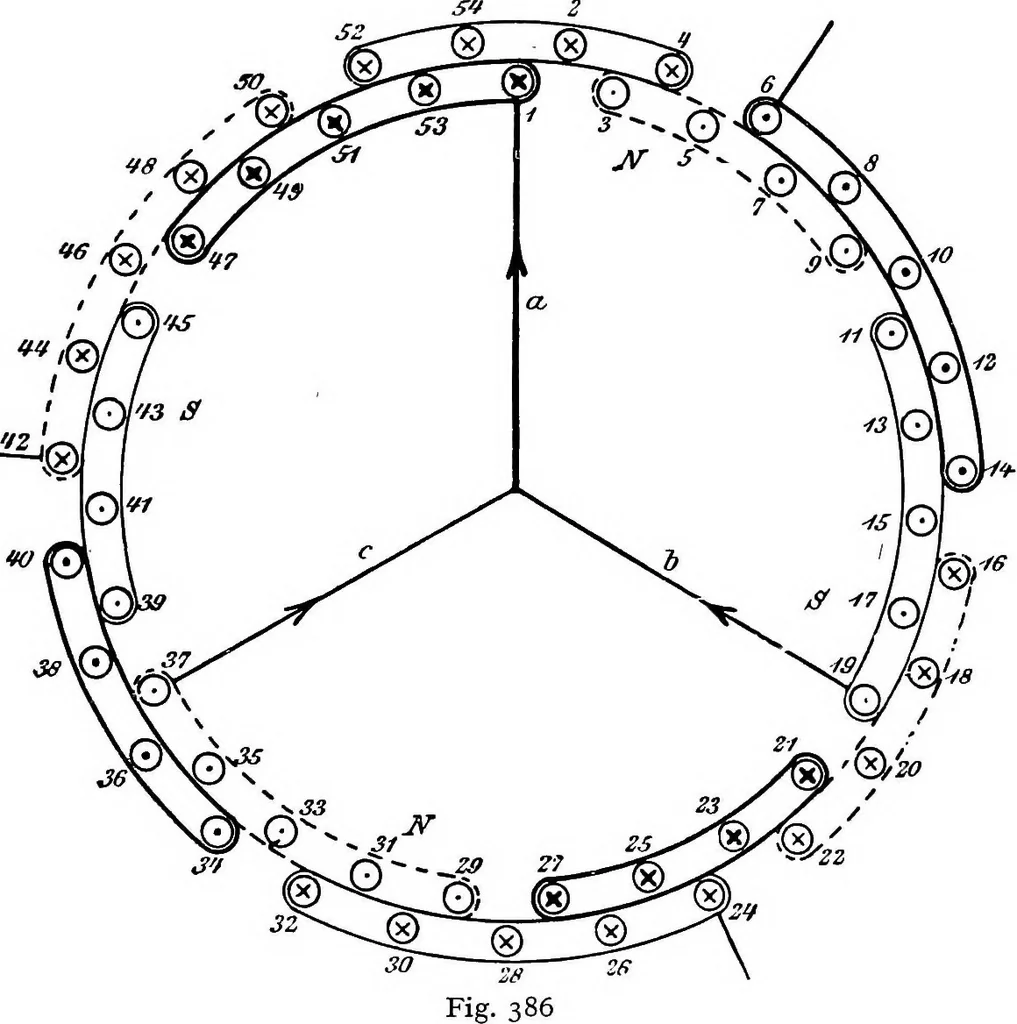

the breadth of the coil-side is the same, viz. f of the pole-pitch.To make the diagram as clear as possible, the slots are shown in twotiers. A thick line is drawn around each coil-side of the first phase, a thinline around each coil-side of the second phase, and a dotted line for thethird phase.… … neutral point, we shall continually oppose the direction of the current. Thewinding of phase b is given by the following table: 19—32 28 / / 45— 4 41—54 / ./ 17—30 13—26 / / 43— 2 39—52 / / 15—28 ri—24 376 Electrical Engineering Similarly, the winding of phase c is as follows: 37—50 46 / / 9—22…
