Reeve, Sidney A. (Sidney Armor), 1866-1941 · New York, London, The Macmillan Company · leaf 227

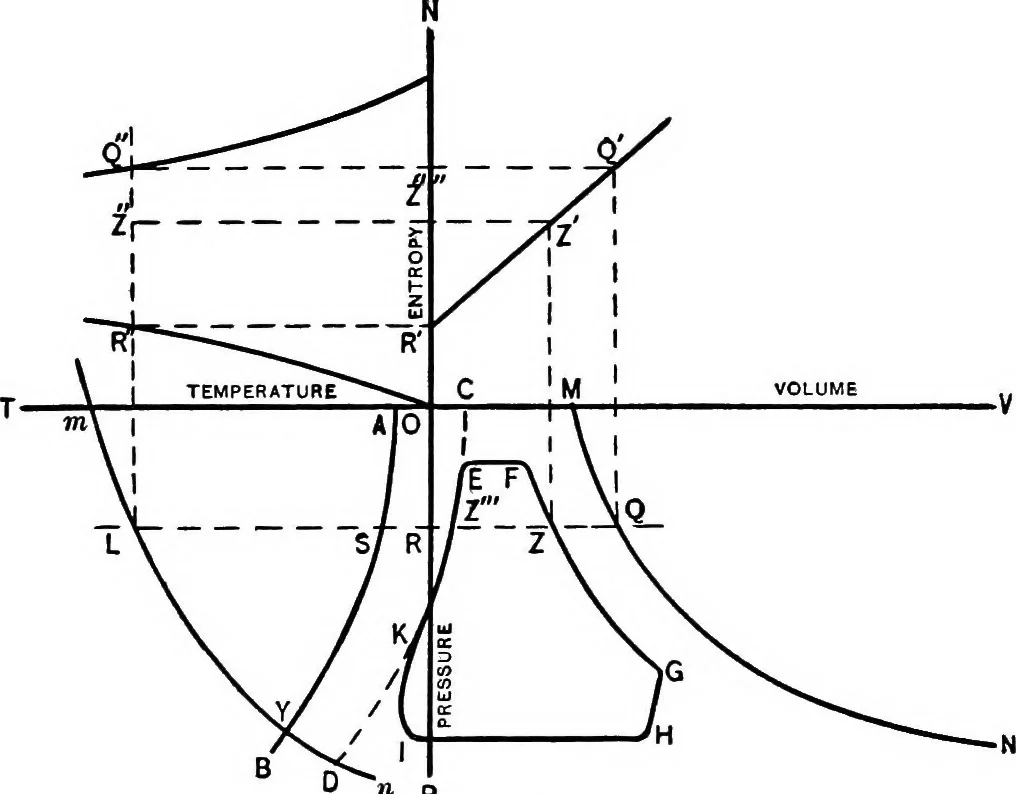

produced by 1 Published by Progressive Age Pub. Co., 280 Broadway, New York City. 210 THE THERMODYNAMICS OF HEAT-ENGINES oneself with the aid of a steam-table, though at considera-ble cost of time and trouble. Its essentials are representeddiagrammatic ally in Fig. 39. The sheet is divided into… … n p Fig. 39 indicated. The lower vertical axis similarly measurespressures, except that the zero-point is at the edge of thepaper. The left-hand horizontal axis measures tempera-tures, the zero-point being at O, which represents the arbi-trary zero of the steam-tables, the melting-point of ice,…
Thermodynamics · Heat-engines
