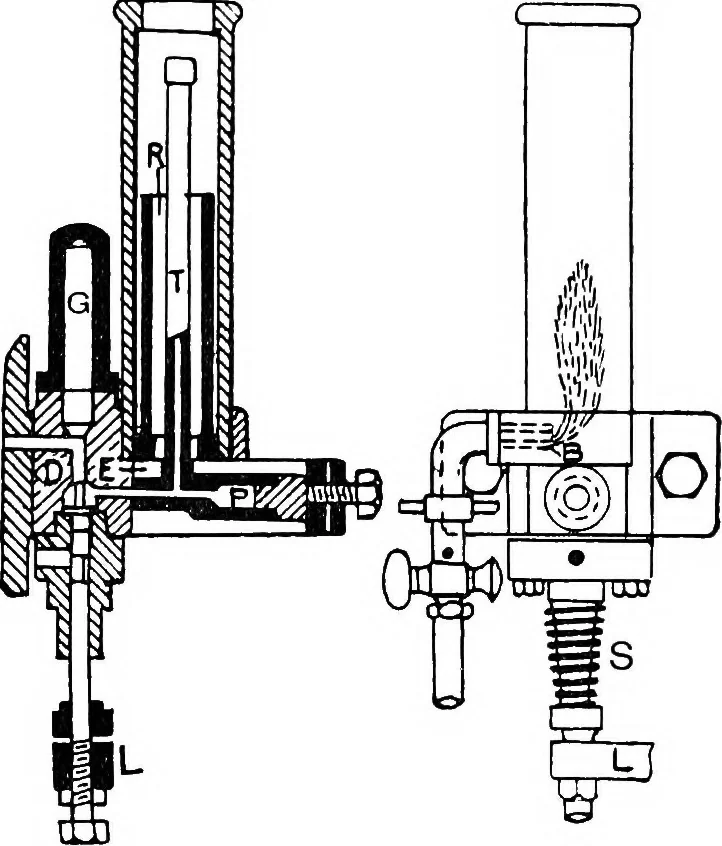

s3 < O H a o w aoo Q O o I 32 TYPES OF GAS ENGI^fES. rises, and the burnt products in theltube T escape throughthe lower orifice of the valve E. In this design a ratherlong ignition tube is required, to ensure the fresh mixturereaching the hottest part of the tube T, by forcing to itsupper… … FiQ. 15.—otto Tube Igniter. In 1893 Messrs. Crossley patented a self-starting arrange-ment for their gas engines, which consists essentially of ahand pump for forcing a charge into the cylinder when thecrank is in a proper position for receiving an impulse.The exhaust cam on the lay shaft is so…
