Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 283

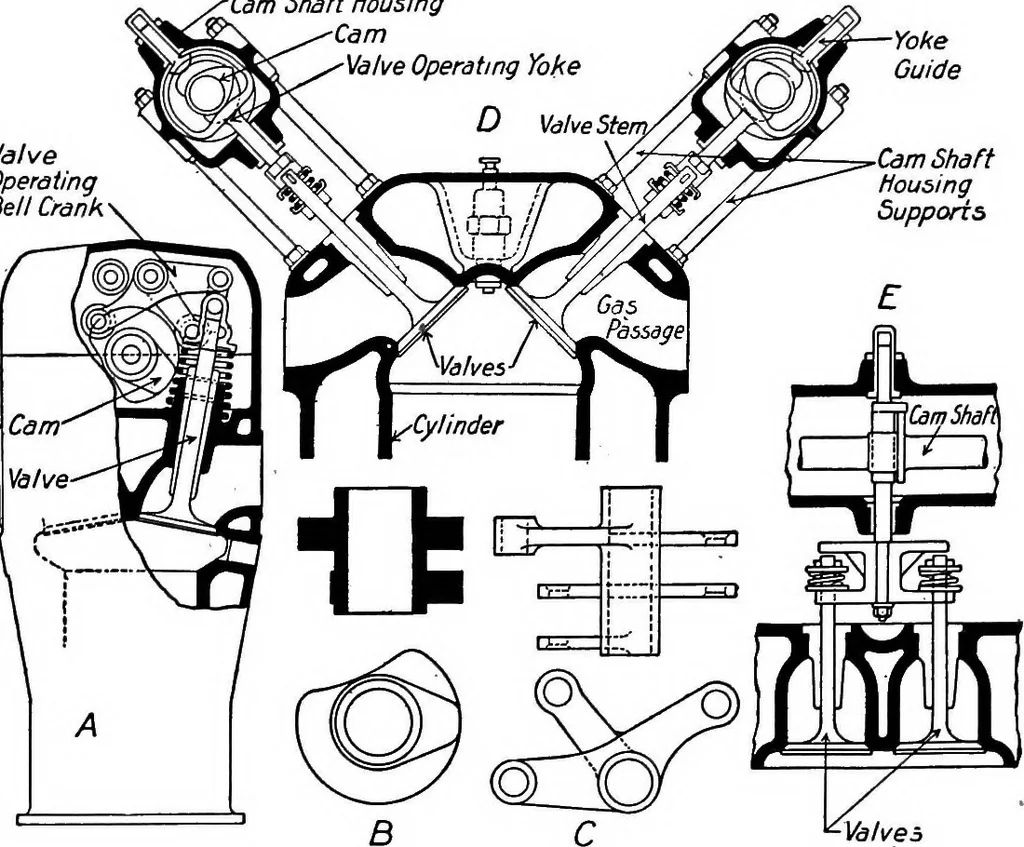

in an unusual degree. A single over- 282 Aviation Engines head cam-shaft has eight pairs of cams, which are shownin detail at B. For each valve there is a three-armedrocker, one arm of which is connected to the stem of thevalve and the two others are in contact respectively withthe opening and… … Fig. 112.—Two Methods of Operating Valves by Positive Cam MechanismWhich Closes as Well as Opens Them. locked in position. This allows some adjustment to bemade between the valves and the actuating rocker. It willbe evident that one cam and one rocker arm producethe opening of the valve and that…
