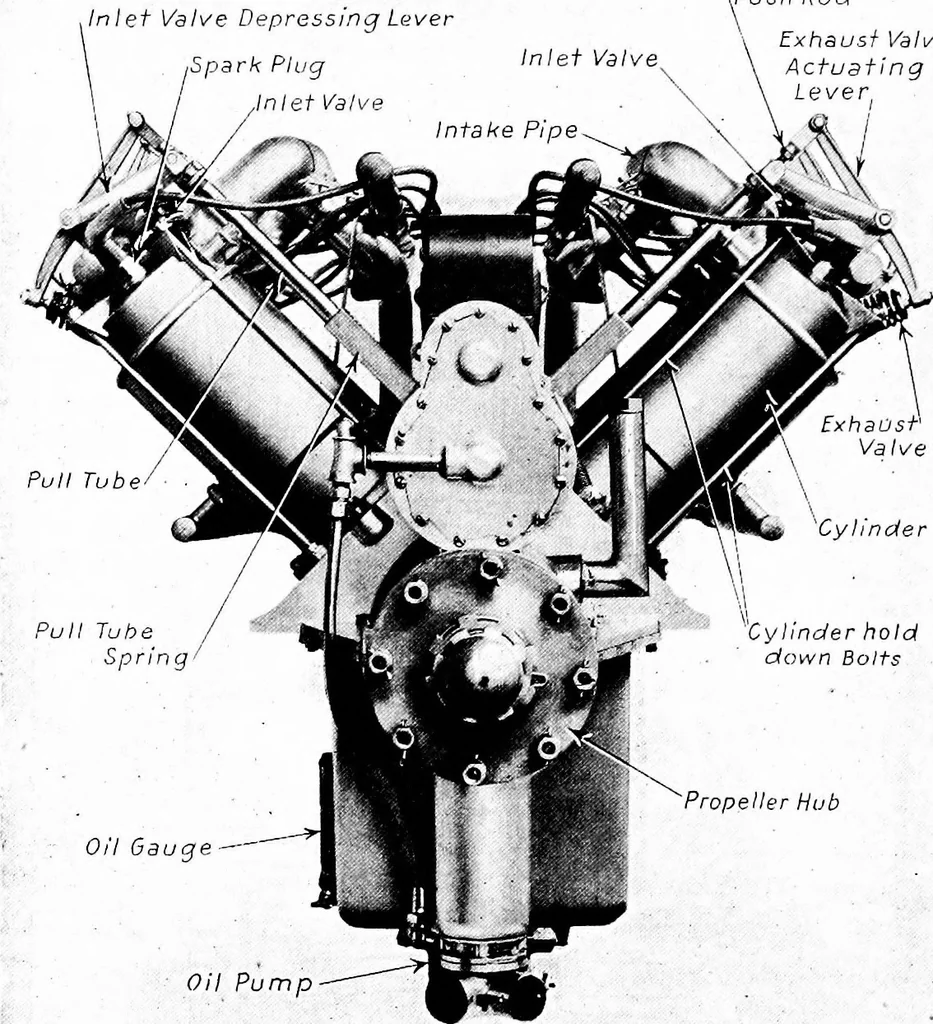

286 Aviation Engines area is obtained by the use of two valves, the gases willbe drawn into the cylinder or expelled faster than witha lesser area. Even if the areas are practically the sameas in the diagram at Fig. 113, the smaller valves may .Inlet Valve DepressingLeve Push Rod Exhaust… … K i Fig. 115.—Front View of Curtiss OX3 Aviation Motor, Showing Uncon-ventional Valve Action by Concentric Push Rod and Pull Tube. have a greater lift without imposing greater stresses onthe valve-operating mechanism and quicker gas intakeand exhaust obtained. The smaller valves are not af-fected…
