Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 316

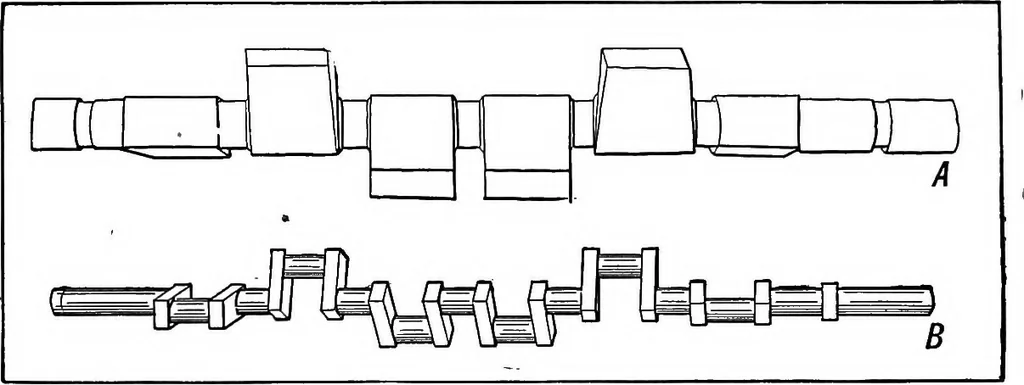

t Construction 315 a drop or machine forging which is formed approximatelyto the shape of the finished shaft and in rare instances(experimental motors only) they may be steel castings.Sometimes they are made from machine forgings, whereconsiderably more machine work is necessary than wonldbe the… … Fig. 135.—Showing Method of Making Crank-Shaft. A—The Rough SteelForging Before Machining. B—The Finished Six-Throw, Seven-Bear-ing Crank-Shaft. Le Ehone type the crank-shafts are built up of two pieces,held together by taper fastenings or bolts. The form of the shaft depends on the number…
