Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 362

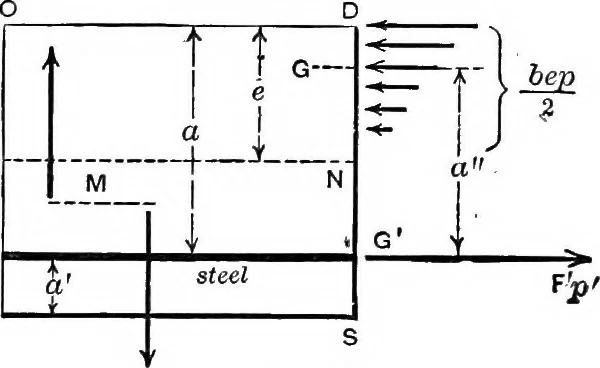

the resultant compression in the concrete between iVand J), viz., ^ p.he, lbs. [see eq. (1)], is equal in value tothe total tension Fp, lbs., in the steel rods at (?, and that theyare parallel. Consequently they form a couple (the stress-couple of the section) whose moment is equal to the productof… … Fig. 293. equilibrium of the free body OiV in Fig. 292 the shear J andthe two forces V (reaction) and P^ (load) must be equivalentto a couple of opposite and equal moment to that of the stresscouple. Call this moment M [in this case it has a value ofYx — P^(x — aij)]; it is the bending moment of…
Mechanics, Applied · Strength of materials
