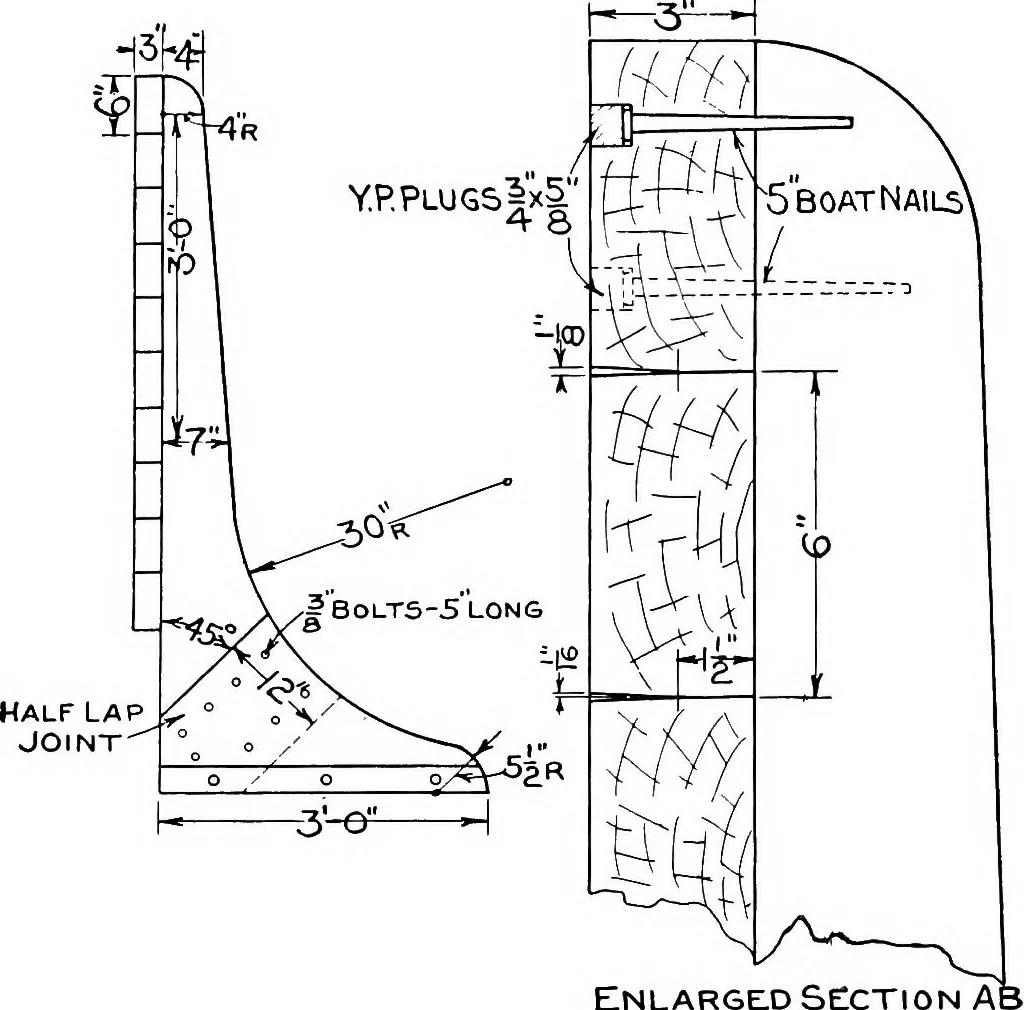

nd all high spots removed. Begin calk- T -8-tf lb -fOi t? E3> f&M^ Iron Bolts-I3long^ lO do € i 4 .4 All material used To Be: Yellow Pine. Figure 39.—Form for Practice Calking. ing at one end and tuck a strand of cotton or oakuminto the seam, then with a dumb iron gather the OUTSIDE PLANKING… … Figure 40.- enlarge.d section atShowing Fastcnings,Calking Seams AndPlugs Over nails. -Details of Form for Practice Calking. Go over the seam again, using a calking iron, anddrive the cotton or oakum home, so that room isleft for the reception of the putty. The tendency of the amateur is to drive…
