Skene, Norman L. (Norman Locke), 1878-1932 · New York : The Rudder Pub. Co. · leaf 74

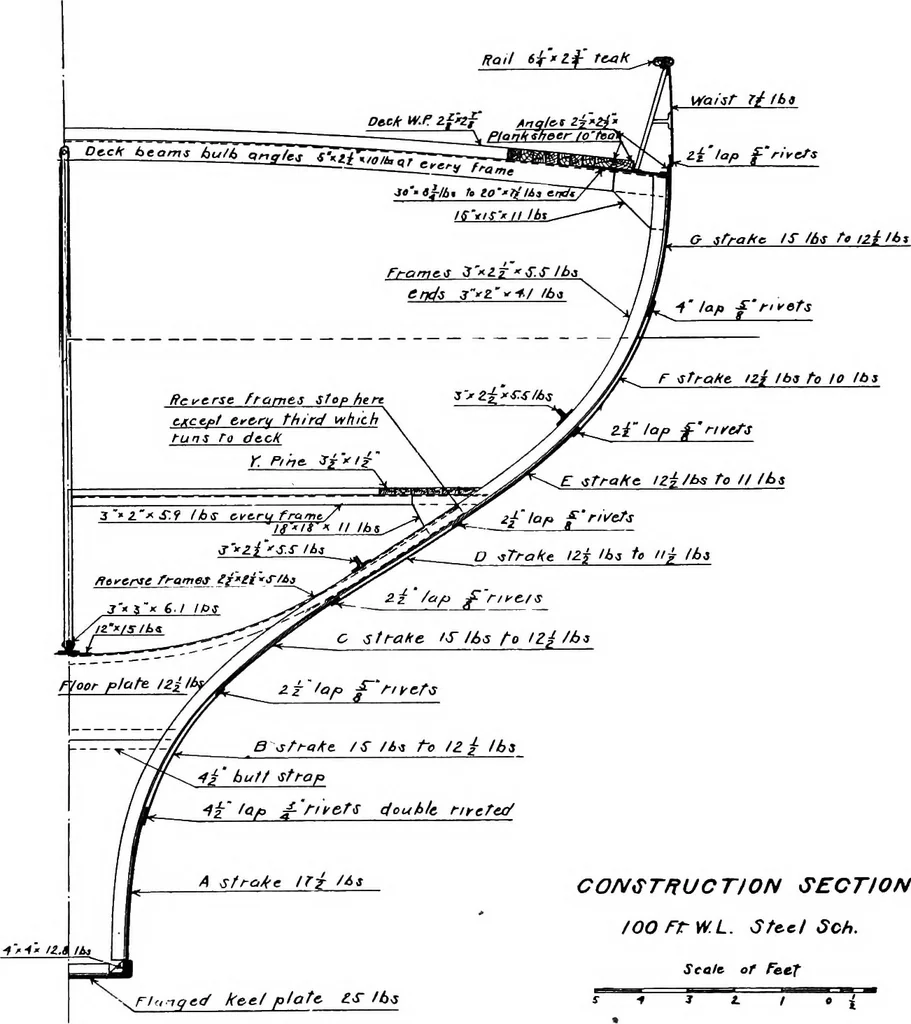

o ELEMENTS OF YACHT DESIGN 63 twentieth of an inch thickness. Angle bars, I bars, etc., are rated accord-ing to the dimensions of their legs, and their weight per lineal foot orthickness in twentieths of an inch. … CONSTRUCTION SECTION /OOFt-W.L. ■Sfe.cl Sch. Seefe of faef \ri<,niic</ Kcc/plate cs Ib^ FIG. 24. The keel of the schooner shown in fig. 24 is a twenty-five pound plateflanged at the sides and riveted to the garboard strake. The latter and thesheer strake are heavier than the remainder of the…
Shipbuilding · Yachts
