Printing; a textbook for printers' apprentices, continuation classes, and for general use in schools (1917)
Henry, Frank Souder, 1867- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 219

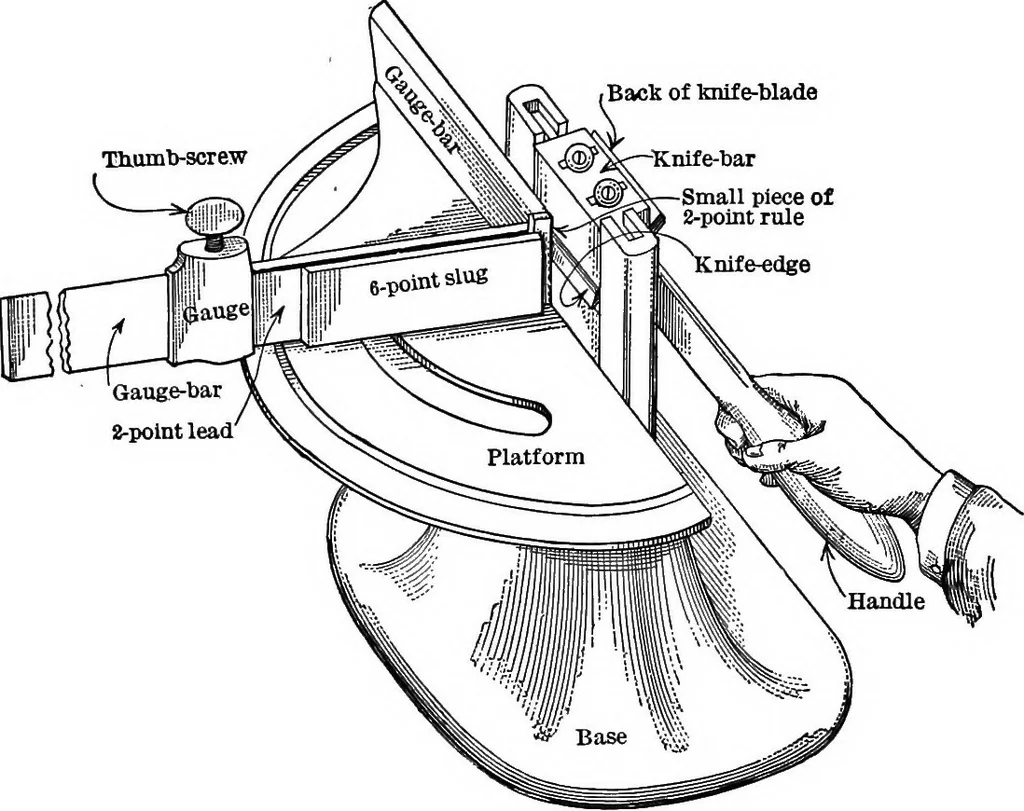

e, being careful to remove the burr. 204 PRINTING Now set the gauge. To do this correctly obtain a piece oflabor-saving rule (test it to insure accuracy), place it againstthe gauge-bar, raise the knife-holder high enough to bring theknife to about the center of the labor-saving ruJe (see Fig.… … Fig. 124.—^Dressing up a Small Piece of Rvile on a Mitering-Machine. The distance between knife-edge and gauge is now exactlythe same as the length of the rule. Do not make the mis-take of placing the rule against the body of the knife-holderinstead of the knife-edge when setting the gauge; if you…
