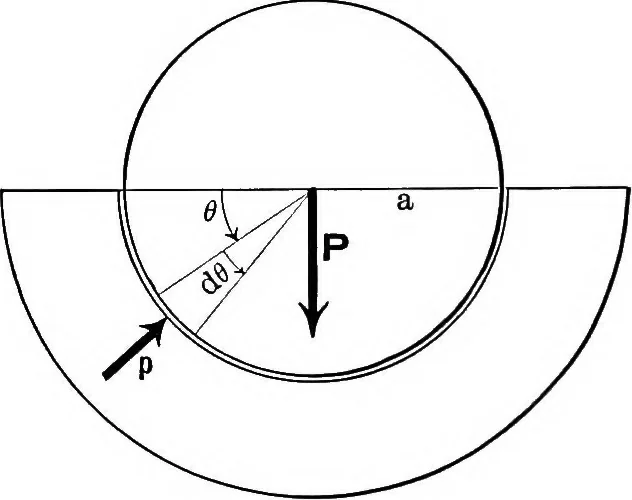

normal reaction over this element ofsurface, and dF be the corresponding frictional force; thenwe have dF= ndN = up -l-add, where p is the normal reaction per unit area or the pressure,a is the radius of the shaft, and I the length of the bearing. 52 ANALYTICAL MECHANICS Therefore the total… … Fig. 38. of dependence of p upon d. But whatever the relationbetween p and d it is obvious that the sum, over all the sur-faces of contact, of the vertical component of the normalreaction must equal the load which rests upon the bear-ings. If P denotes this load, then p must satisfy the condi-tion…
