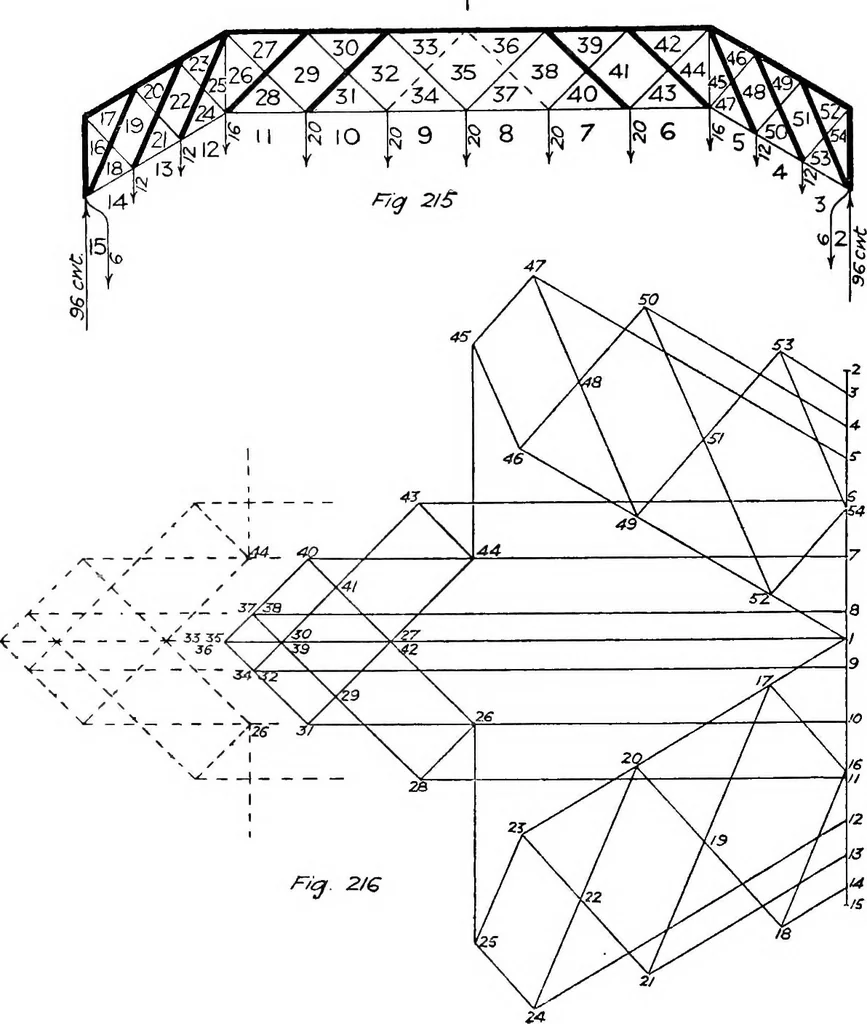

etrical loading, it must come somewhere upon the horizontalline from point 1. Assume any given position for it and proceed withthe diagram until point 26 is reached, as indicated by the dotted lines.This point will give the level at which to cut off 25-26, and point 26being now in its correct… … EXEECISES ON LECTURE X Q. 45. A lattice girder of double triangulation is composed of five bays withbars at 45 degrees, and loaded as in Eig. 217. Draw the frame and stressdiagrams. For answer, see Figs. 218 to 222. (Note.—This extra horizontal force 11-1 required to balance the structureappears to…
