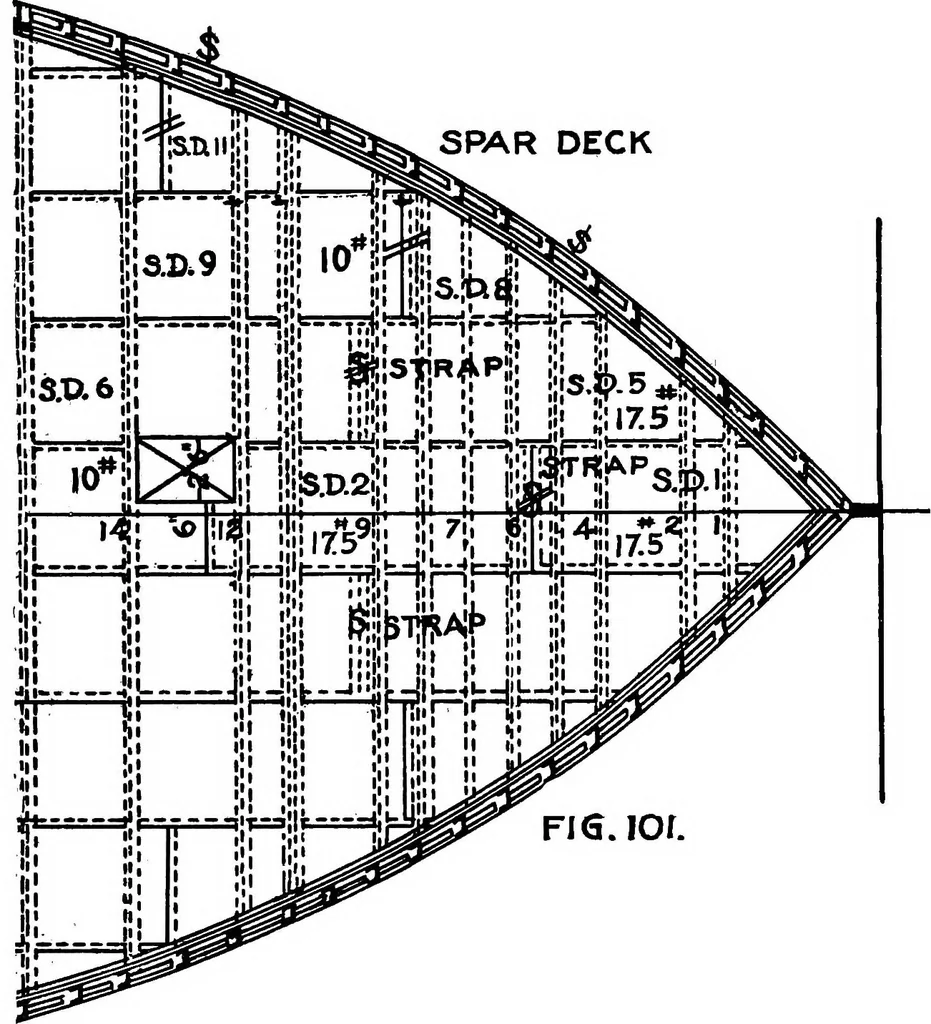

k a mold is made for the tapered plates, stringer anglesand clips to the shell for one side of the vessel and for parallel platesone mold does for them all. In this case 15 plates are marked fromone mold and two plates from each mold for the balance of the deckplating. 92 LAKE SHIP YARD METHODS The… … from the deck plating molds for the deck riveting and a space moldfor the shell rivet holes. The beams for this deck are marked withstrip molds. One mold for the deck plating rivet holes does for all ANGLE STRINQER SPAR DECK KT
