Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 114

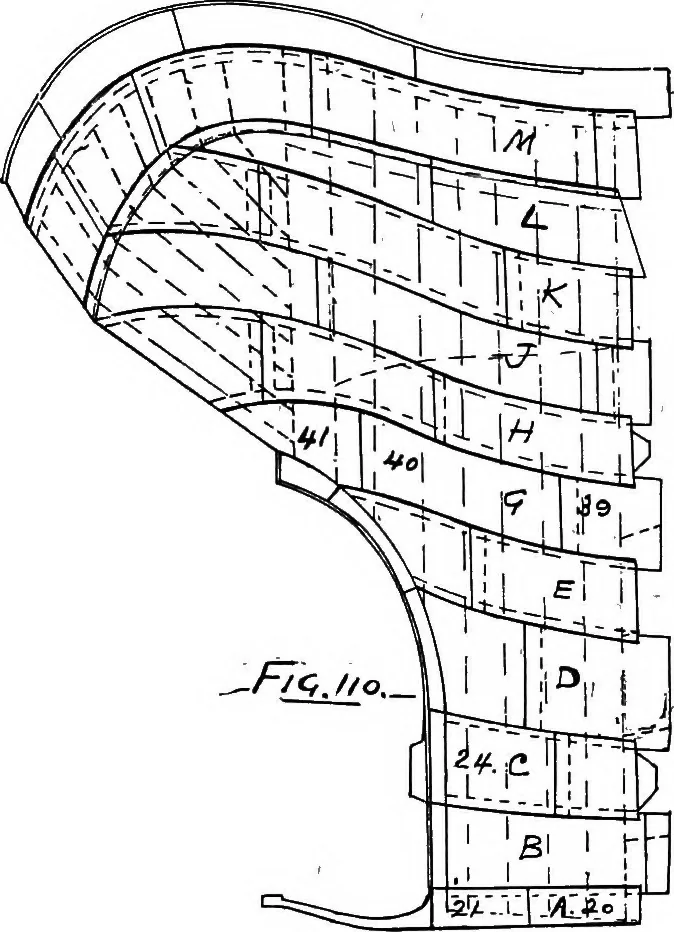

completed and ready forbolting up when erected inplace.D strake is treated the same as stem plates and is laid out fromstem to stern post. E strake connecting on to the stern post is setto shape and marked from the ship with template wood. G, No. 40 and 41, are marked from the ship; No. 41 is made… … 104 LAKE SHIP YARD METHODS OF from the solid set made for getting the true form of the plate fromthe ship. The gauge marks obtained in this way remove the complica-tions likely to occur by any other means. Fig. 113 shows part of threeframes, transom, upper parts of stern frame, oxter plate and…
