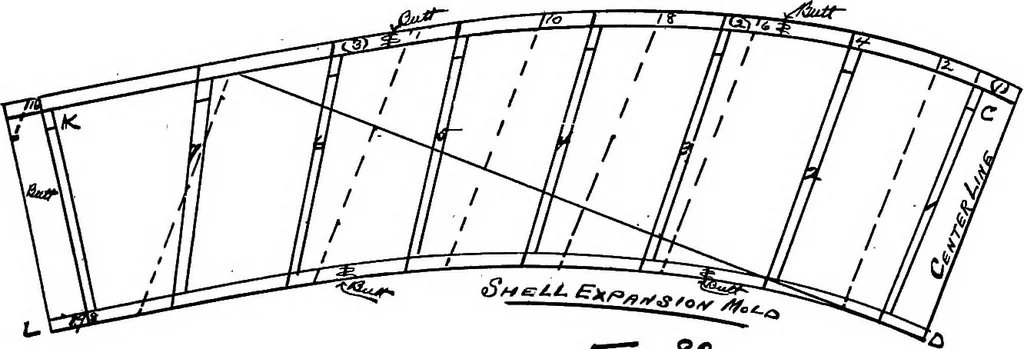

ates are marked from molds 2 and 3 and No. 1 mold beingfor one side the mold is turned over to complete the port side of tlieplate. The cant frames 1, 2, 3, and 4, have the same number of holes toshell, so that eight cant frames can. be marked alike on the plating;5, 6, and 7 cant frames have Ihe… … ^T^lZ. obtained from the expanded mold for the shell DK, Fig. 79 and thestringer flange from the stringer mold. Fig. 66. When the molds are applied to the stringer angle the buttock lines2B, 4B, 6B, 8B, lOB, 12B and 14B must agree at the heel of the an-gle where the molds come together. Fig. 81…
