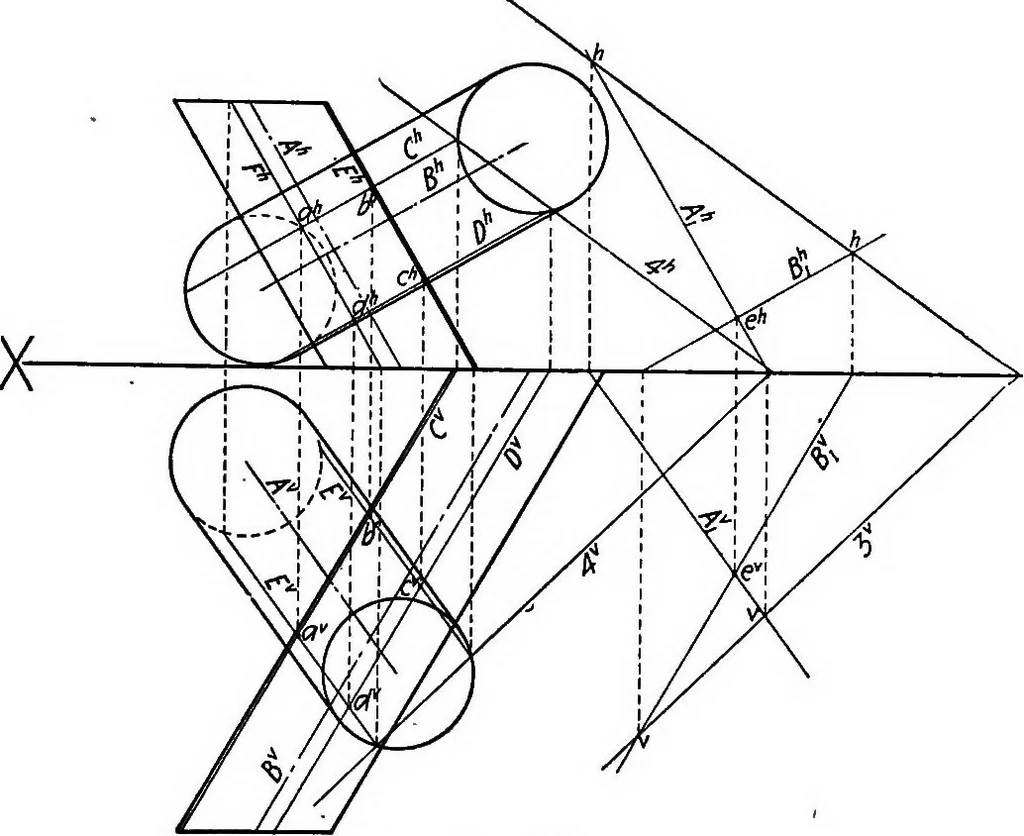

el to 3 will cut straight line ele-ments from both cylinders, and these elements intersect INTERSECTION OF SURFACES 89 in four points of the required line. One such auxiliary-plane is shown as plane 4, cutting lines C and D from onecylinder and E and F from the other. These lines intersectin points… … Fig. 170. simpler in the case of cylinders of revolution. In this caseone cylinder can be placed with its axis perpendicular to V,the other parallel to H, and the auxiliary planes are takenparallel to H. Problem 68.—To draw the projections of the line of inter-sections of a cylinder and a cone. The…
Geometry, Descriptive
