Ames, William L. (William Lewis), 1855-, Wischmeyer, Carl · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 57

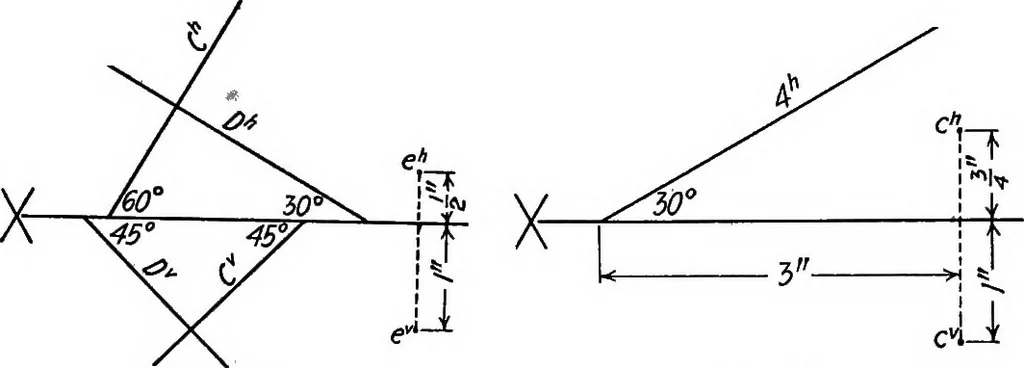

ith the long side inclined at 30°to X, is the plan of a square the upper edge of which is K in. below H.Show the elevation of the square and the traces of the plane containingit. 46 DESCRIPTIVE GEOMETRY 172. Plane 4 contains point c (Fig. 76). Find 4. 173. Find a line of plane 2 of Fig. 73,… … FiQ. 75. Fig. 76. 176. Point p, lying in plane S and J^ in. from V, moves to theposition (,p) when the plane is revolved intoH (Fig. 78). Find gand p. 177. Plane S has its H trace inclined at 30° to X and its V trace at45°. Show the projections of a line lying in the plane, parallel to Hand 1 in.…
Geometry, Descriptive
