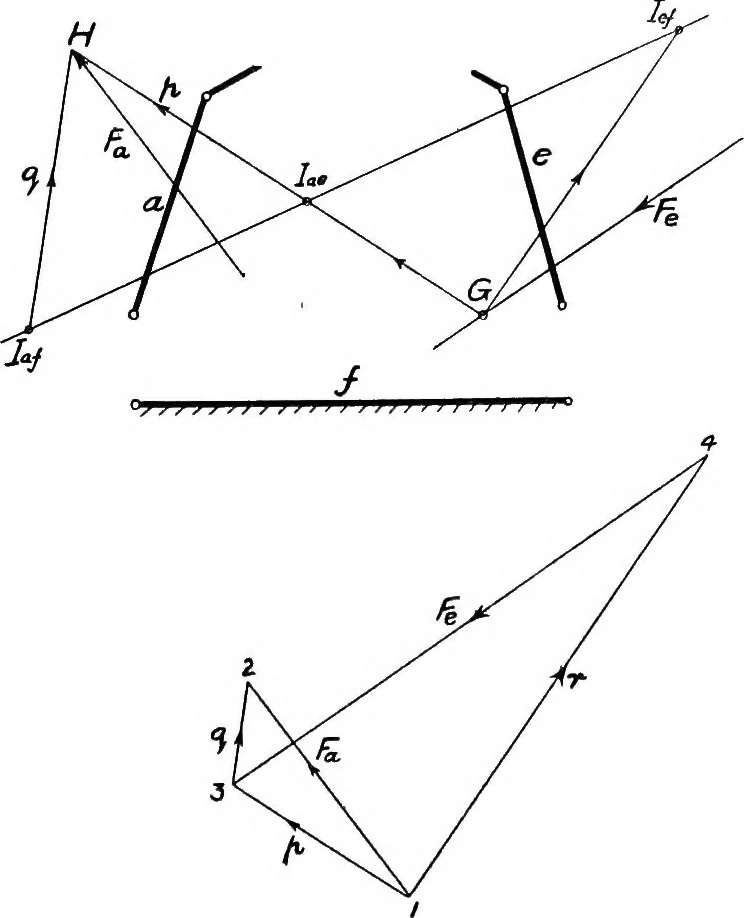

then Fe will be STATIC FORCES IN MECHANISMS 133 equal and opposite to the force in the same direction requiredto keep the mechanism in equilibrium. Take any convenient point H upon the line of action of Faand join H to I^/ and lae, and resolve the force Fo in com-ponents q and p in these two… … Fig. 76. link is not necessarily a straight rod such as we show forconvenience in our diagrams, and so the force q actingthrough it can have no effect in causing relative movementof the movable links of the mechanism ; we can, therefore,neglect q in our further treatment. Next produce Hl^e tomeet…
