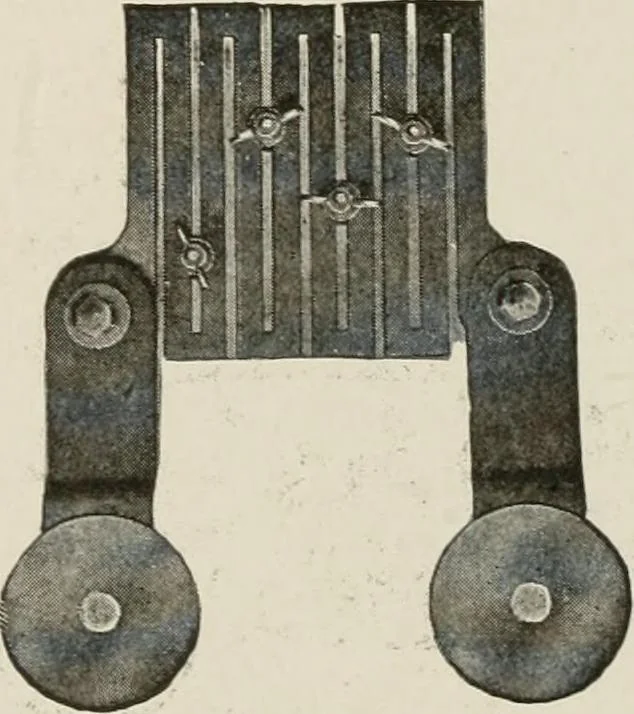

armatures, equalizing rings orcross connectors are employed. Thecommutator spider is mounted on anextension of the armature spider towhich it is keyed, thus allowing theshaft to be removed without disturb-ing the commutator. The commu-tator bars are of the best hard drawn copper of highest… … Fig. 24. C & C Adjustable Series Shunt 269
