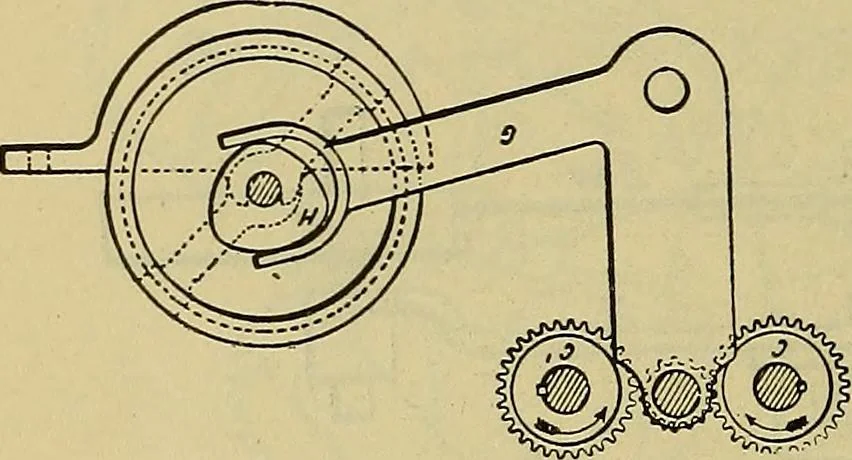

ured in two cir-cles. The divisions of the outer otthese circles are smaller in value thanthose of the inner one, being 100 innumber, in sections of five, and rep-resenting one inch for each division.This outer circle is read by the po-fcition of the figures as they stand inopposition to the… … Fig. 102. Elevation. 100 yards) have passed upon thebeam. We come now to what may betermed the second portion of themechanism, the functions of whichare to operate THE DIAL-PLATE POINTER,and alternate the direction of therevolution of the dial-plate. The shortshaft, carrying the wheels D and B,runs…
