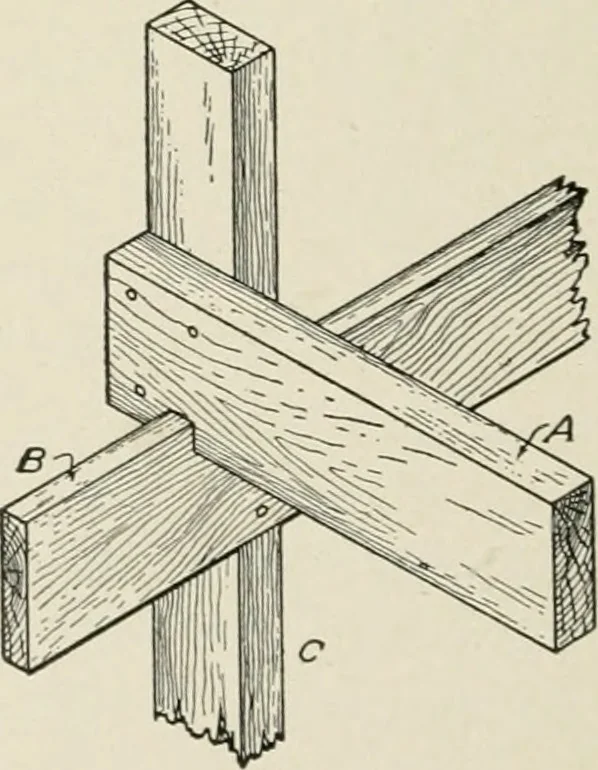

Fig. 104. Notched Stud withLedger Board Fig. 105. Ledger Board with NotchedFloor Joist in Place them, as shown in Fig. 105, and spiked to them and to the studding.In Fig. 105, A is the joist, B the ledger board, and C the stud. Evenin the braced frame a ledger board is usually employed to…
