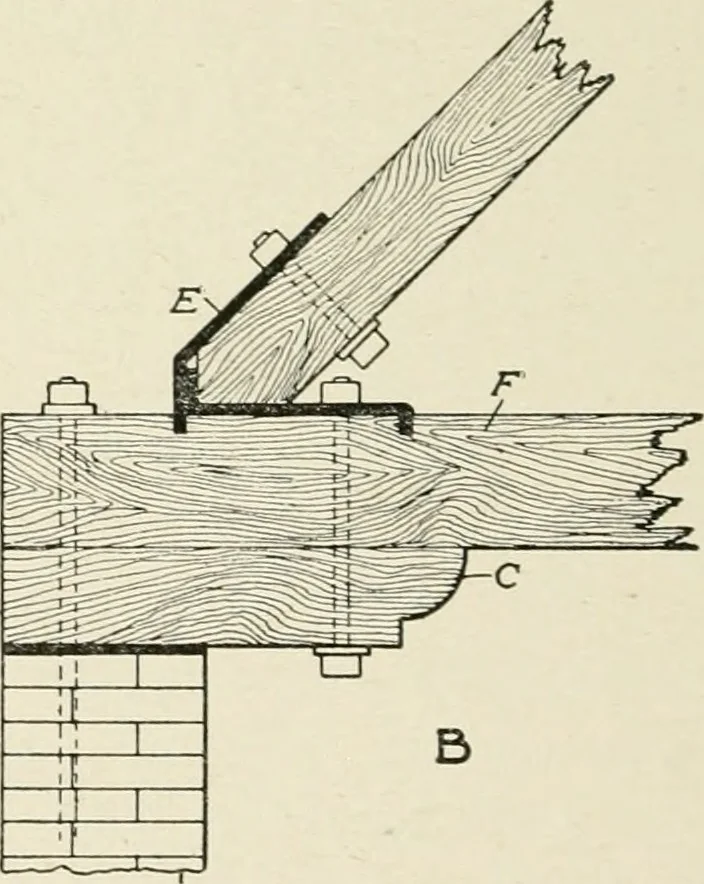

Fig. 245. Two Methods of Forming a Joint between Both Chord and Tie-Beam of a Truss The tie-beam is shown at A, and B are the struts. The blocks C,set between the struts, receive the thrust from them. They shouldbe notched into the tie-beam A deep enough to take care of anyinequality between the…
