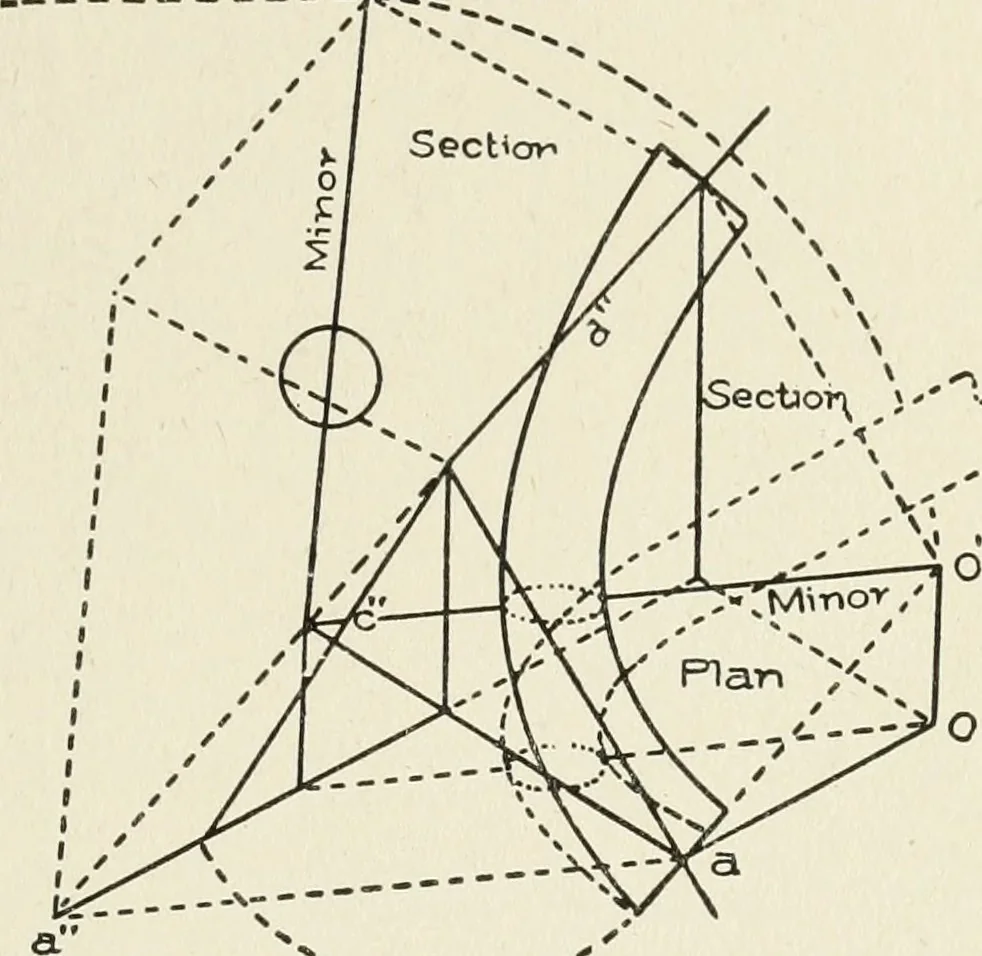

being inclinedand the other tangent abeing level—make a c,Fig. 118, equal to a c inFig. 117, which is a linedrawn square to theground line from thenewel and shown in allpreceding figures to havebeen used for the baseof a triangle containingthe bevel. Make a w in Flg- 123Fig. 118 equal to w o in… … Developed Section of Plane Inclining Un-equally in Two Directions.
