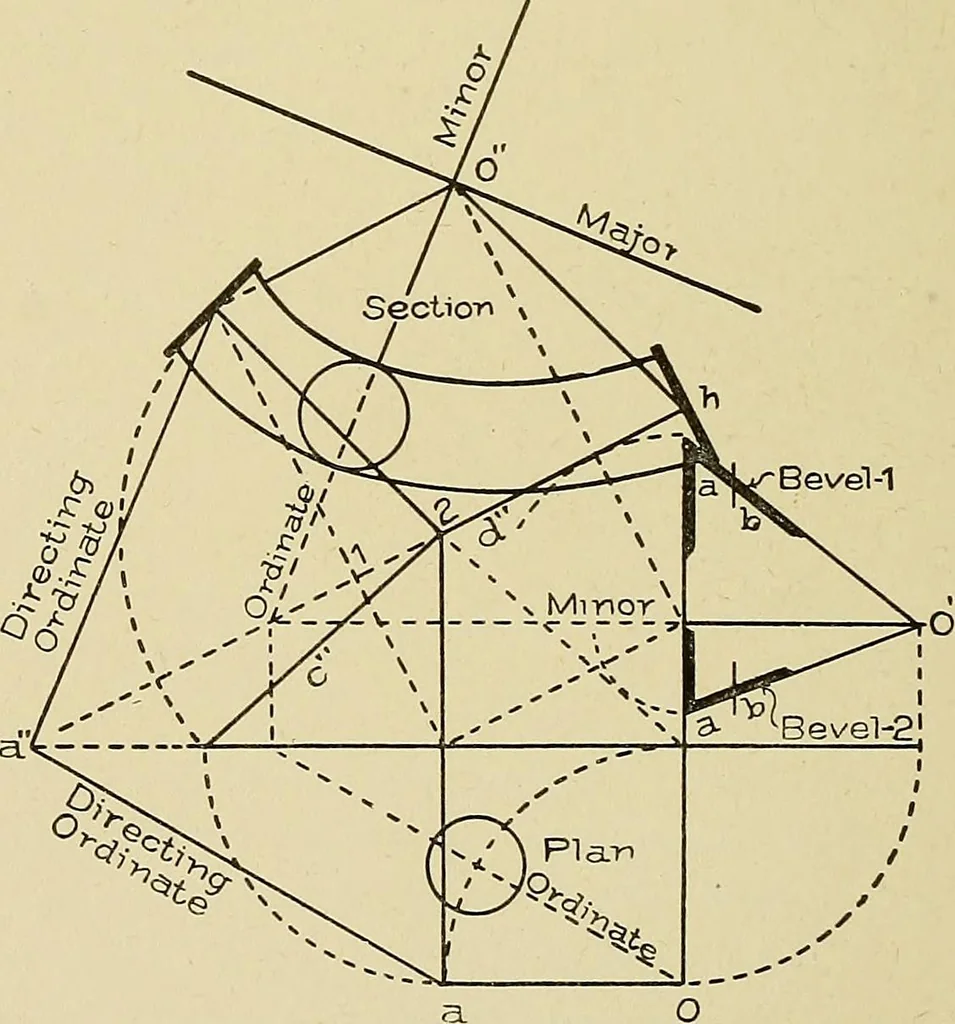

Seventh Case.In this case, illus-trated in Fig. 117,the upper tangentb is shown to in-cline, and the bot-tom tangent a tobe level, over anacute - angle plan.The plan here isthe same as that inFig. 100, where acurve is shown tostretch out from theline of the straightstringer at the bot-tom of a… … Fig. 121. Tangents, Bevels, Mould-Curves, etc., from BottomWreath of Fig. 9.5, in which Upper Tangent Inclines Lessthan Lower One. 330
