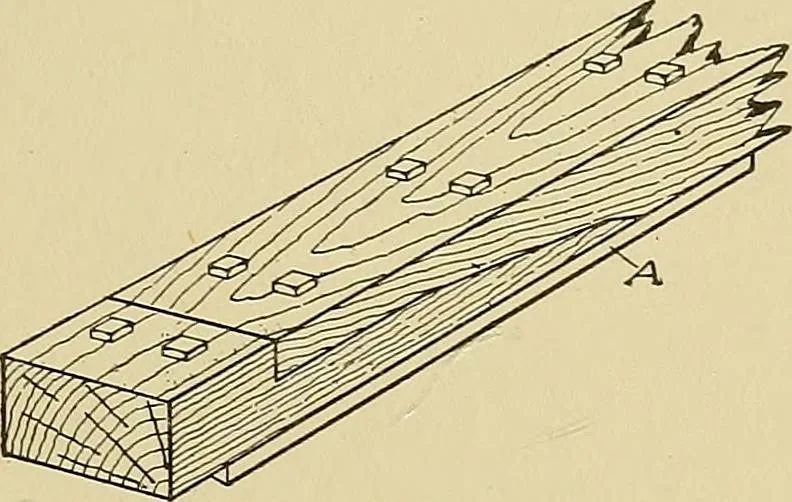

Fig. 63. Tension Splice with Fish Plates 68 CARPENTRY 59 … Fig. 64. Splice Designed for Bending Strains is subjected to a bending stress must be spliced, and in this case thespHce must be formed to suit the existing conditions. It is well knownthat in a timber which is resisting a bending stress the upper partof the piece is in compression, and the…
