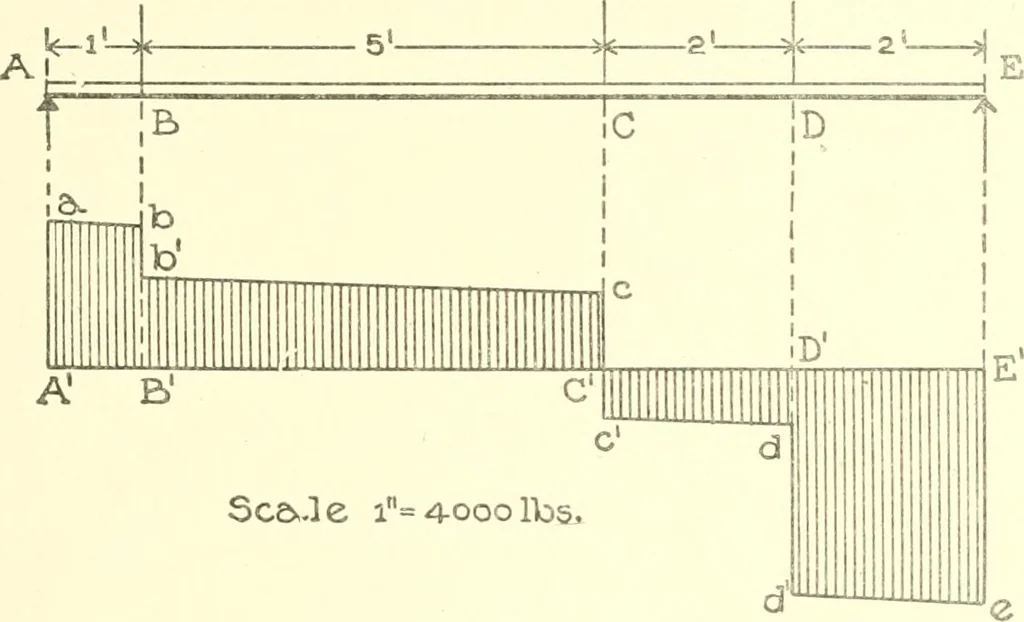

H OF MATERIALS 31 values. We sliall use the same scale as in the preceding illustra-tion, 4,000 pounds to an inch. Then the lengths of the ordinatescorresponding to the values of the shear (see example 3, Art. S7\are respectively: 2,500-^4,000=0.025 inch 2,460-^4,000=0.615 1,460-^4,000=0.365 etc.… … 5^ Sc&.le i= 4-000 lloa. Fig. 14.3. It Is required to construct the shear diagram for thecantilever beam rejjresented in Fig. 15, a, neglecting the weightof the beam. The value of the shear for any section in AB is - 500 pounds;for any section in BC, -1,500 pounds; and for any section inCD, -…
