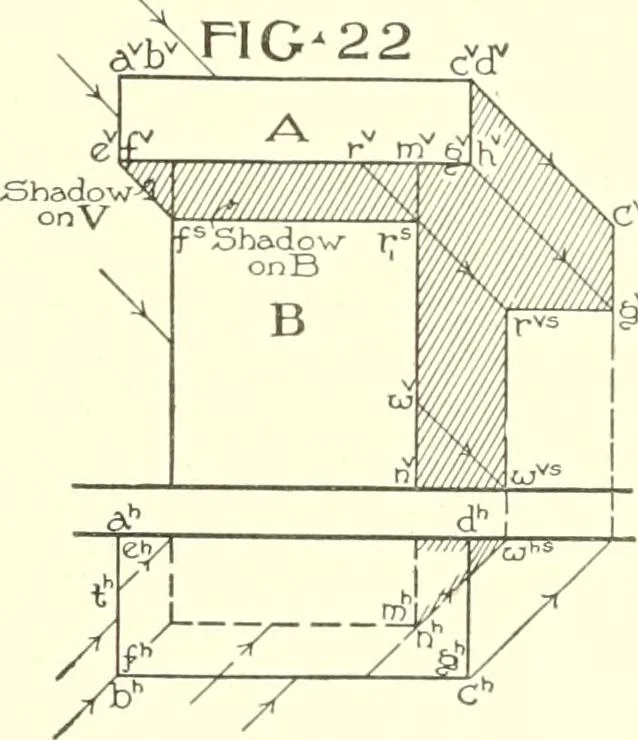

and is evidently the line t^^^if^. Thusthe shadow of the shade line from e to <j has been determined. The next portion of the shade line, g(\ is a vertical line andwe have already obtained the shadow of the end g. Since it is avertical line its shadow on Y will be vertical and ecpial in… … 185 16 SHADES AND SHADOWS other end c, at c^. Therefore cPc^ is the shadow of do andcompletes the outline of the shadow of the plinth. It will be noted that cPc^^ is a 45^ line, which would beexpected since the edge do is perpendicular to V. 49. Considering next the prism B, we find by applying…
