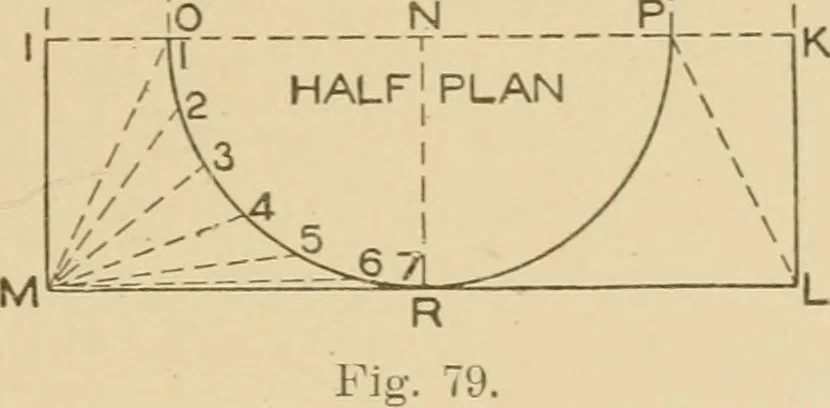

ELEVATION V w … circle 3| inches diameter, andplacing it directly in the centerof the rectangular top, whichis 8| inches wide and 5| inchesloner. Draw the elevation fromthe plan as shown by A B C DE F G H, making the verticalheight Y W, 2^ inches, and theflanges at the top and bottomeach ^ inch. I Iv L M in planis…
