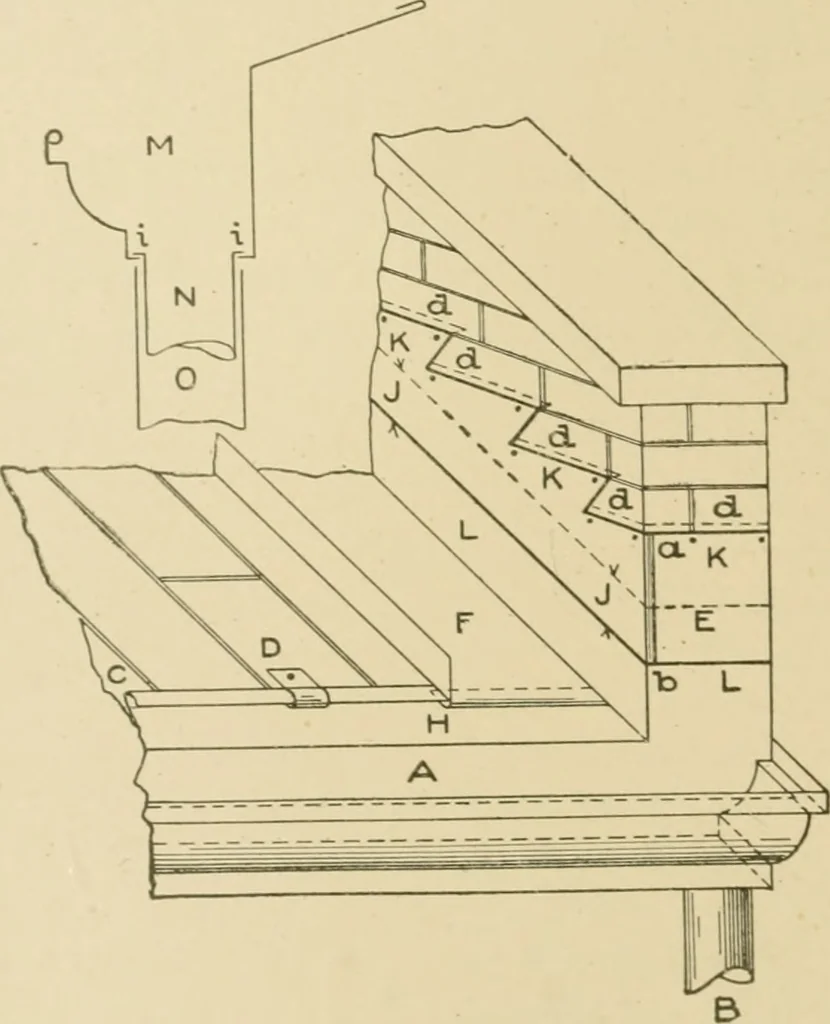

Fig. 226. flashed. A shows the gutter, B the leader or rain water conductor,and C the lock on tlie gutter A, fastened to the roof boards by cleats … Fig. 227. 3S shown at D. The back of the gutter is flashed up against the wallas high as shown by the dotted line E. F represents a s^anding-searastrip locked into the gutter at H and flashed up against the wall as high 260 SHEET METAL WORK 181 as shown by the dotted Hne J J. As the flashing J J E…
