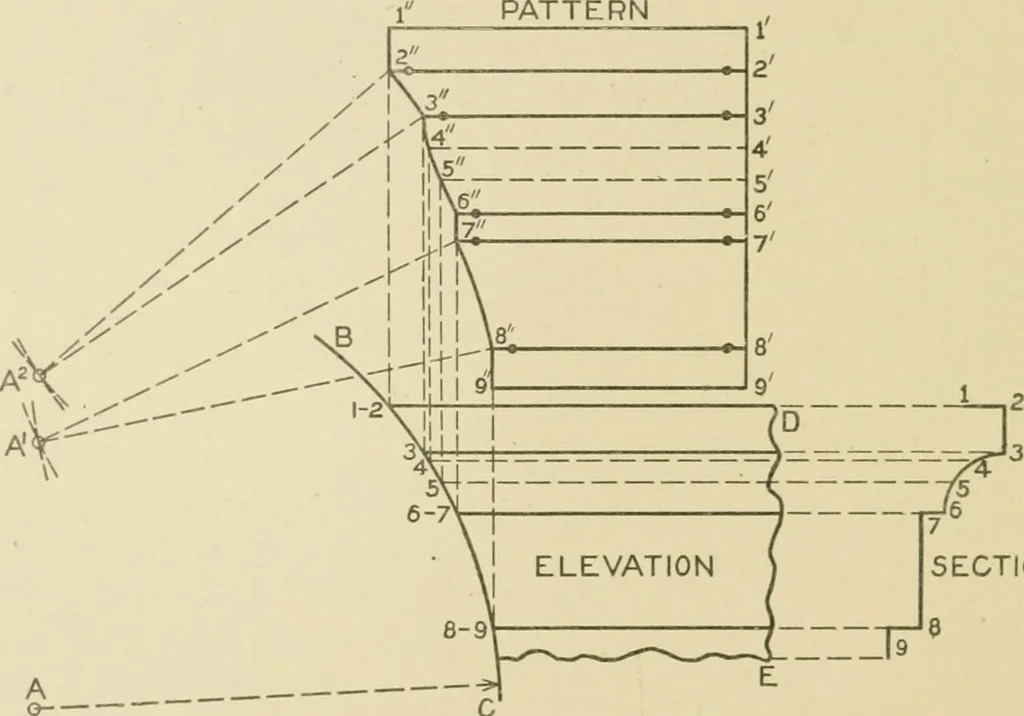

t which the mouldingbutts, has a curved surface either concave or convex, as shown by B Cin Fig. 2S0, which surface is convex. Complete the elevation of themoulding, as 1) E; and in its proper position draw the section 1 9,which divide into equal spaces as shown by the small figures, fromwhich draw… … SECTION CFig. 280. of the section, as shown by the figures on the stretchout line. Throughthe numbered points, at right angles to 1 9, draw lines, whichintersect by lines drawn at right angles to 2 D from similarly numberedintersections on the curve B C, thus resulting in the intersections I to9 in…
