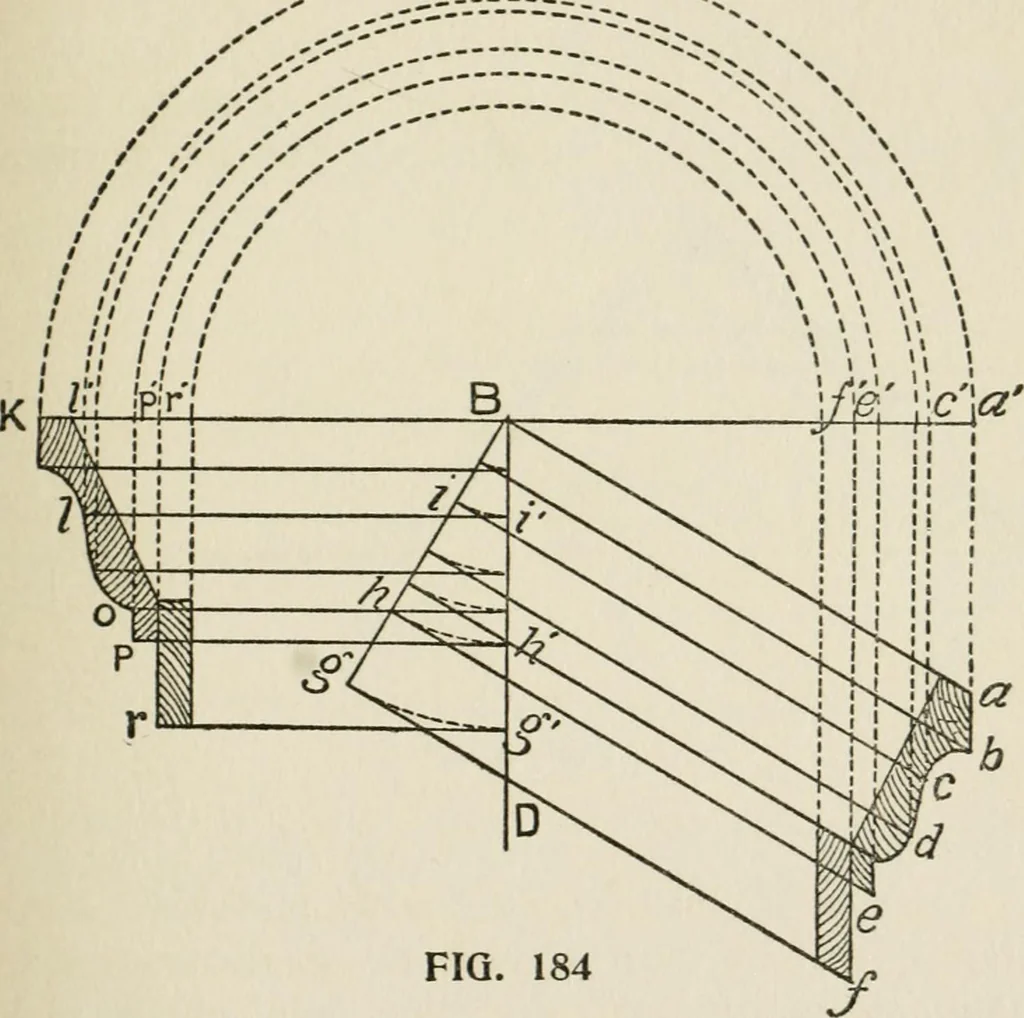

r obtaining thesection of a raking mould that will intersect agiven horizontal moulding, is given below, also amanner of finding the cuts for a miter box for same.The principles on which the method is based being, PRACTICAL CARPENTRY 239 first, that similar points on the rake and horizontalparts of… … faces of a building by the Hne DB (Fig 184), anda section of the horizontal cornice by DBabcdef-Bab being the angle of the roof pitch, draw lineaa, cc, iV, parallel to DB and intersecting theline ka, which is drawn at right angles to DBthrough the point B; then, with B as a center, 240 PRACTICAL…
