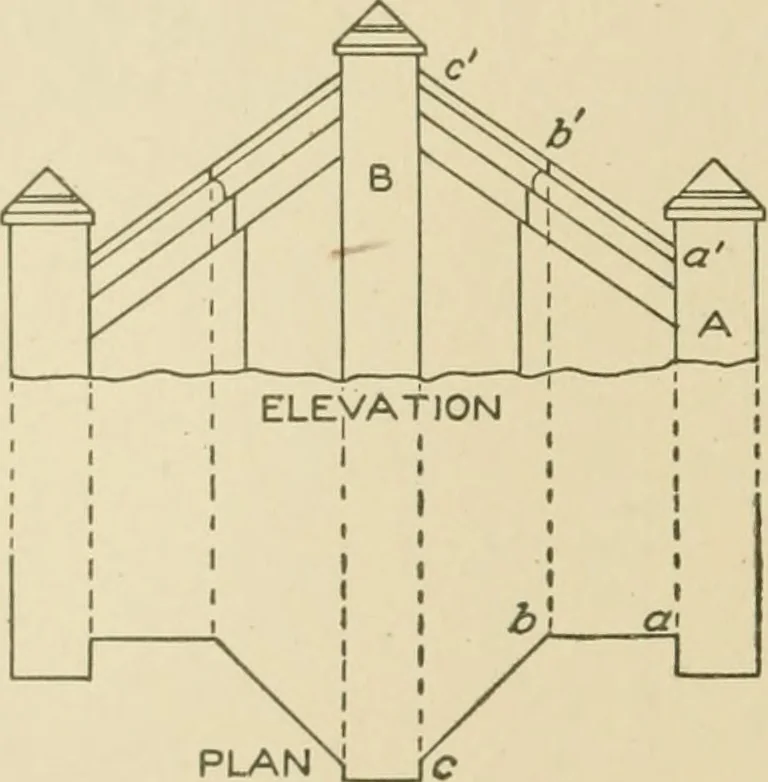

To obtain the pattern for the upper and lower return mouldings,proceetl in precisely the same manner as explained in connection withreturns B and D in Fig. 303. In Fig. 300 are shown the plan and elevation of a gable mouldingin octagon plan. This problem should be carefully followed, as itpresents… … PLAN 310 SHEET METAL WORK 225 that the moulding has an octagon angle in plan a b c, while similarpoints in elevation a h c run on a rake in one line, the top and footof the moulding butting against the brick piers B and A. The method of proceeding with work of this kind is explained indetail in Fig…
