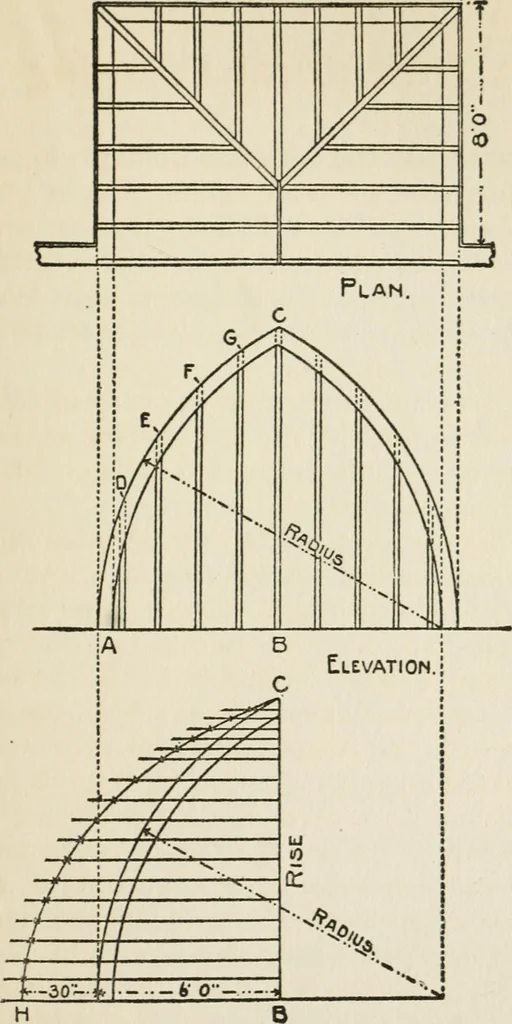

the main or common rafters. Now, the crip-ples or jacks are simply a part of the commonrafter; and their lengths are as from A to Dfor the first jack, A to E for the second, andcontinue on to the line C-B, which is a commonrafter and consequently is the same as A-C.The dotted lines across the side… … Developing the Hjr Fig. 250. rraming for Gothic Ceiling. 292 PRACTICAL CARPENTRY In the lower part of the figure is shown howto find the corresponding shape for the hip. Inthis, the common rafter is shown the same asin the elevation. Lay off any number of jiarallellines extending beyond the curve…
