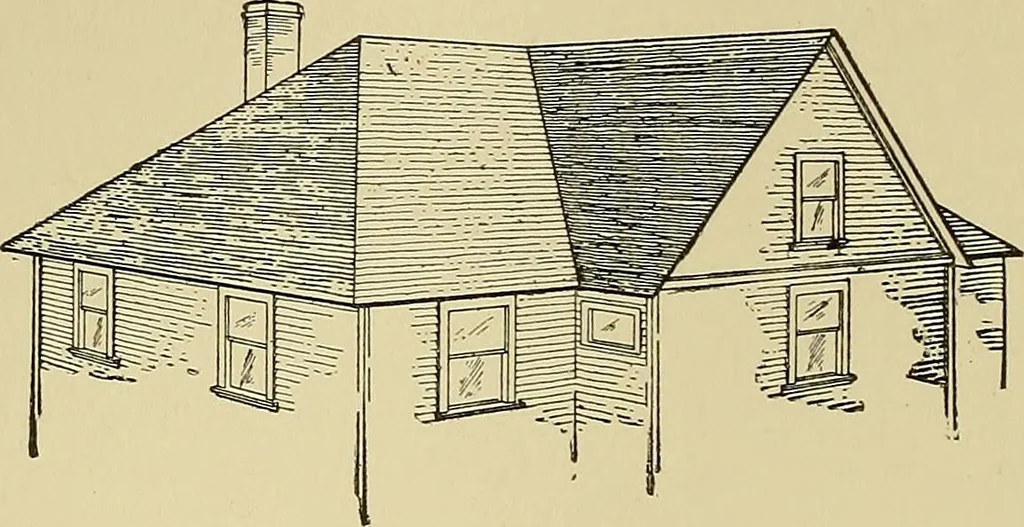

c space and doing without the rooms under theroof for the sake of the exterior appearance. Valley Roof. In Fig. 168 is shown a very simple form of whatis known as a valley roof. It is a combination of two simple pitch 125 114 CARPENTRY roofs which intersect each other at right angles. In the figure… … Fig. 168. Valley Roof the secondary roof rises above the ridge of the main roof, the endwhich projects above the main ridge is usually finished with a smallgable a, or a small hip h, as shown in Fig. 169. This arrangementdoes not make a pleasing appearance, however, and should beavoided if…
