Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 191

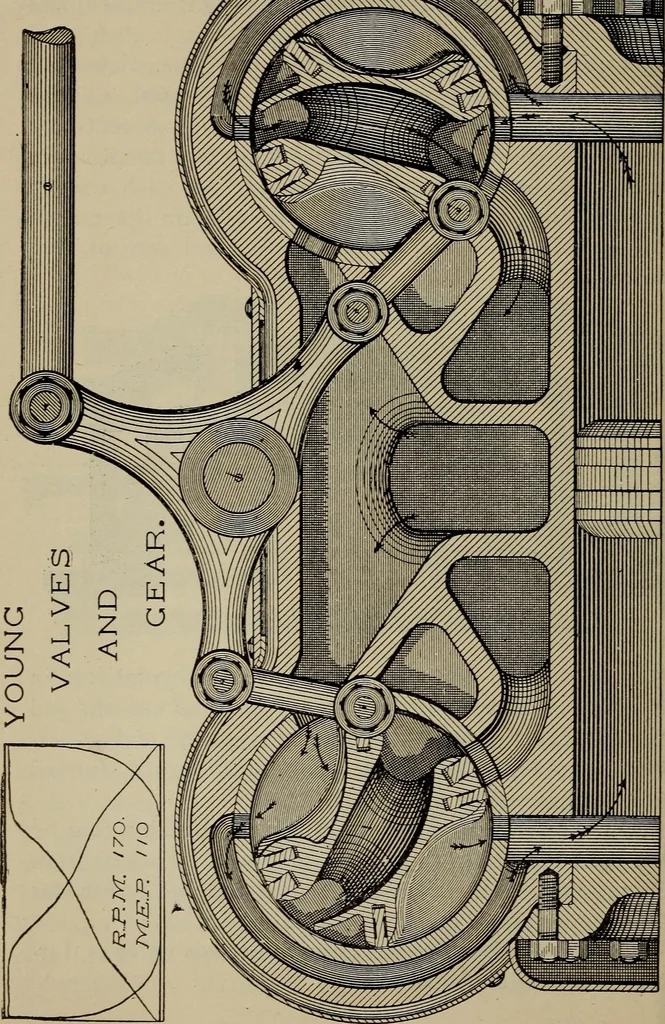

for this system that irregularities inlead are corrected for the shorter points of cut-off, andthe indicator diagrams shown in Figs. 96 and 97 cer-tainly show an excellent steam distribution for allpoints of cut-off. The author desires to say in this connection that hehas seen the originals of… … PISTON VALVES AND BALANCED VALVES 191 The Young valve and gear is an adaptation of theCorliss principle to suit requirements in locomotivepractice, and consists of two valves for each cylinder,operating alternately as inlet and outlet and driven bythe Corliss wrist motion, used in connection with…
