Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 304

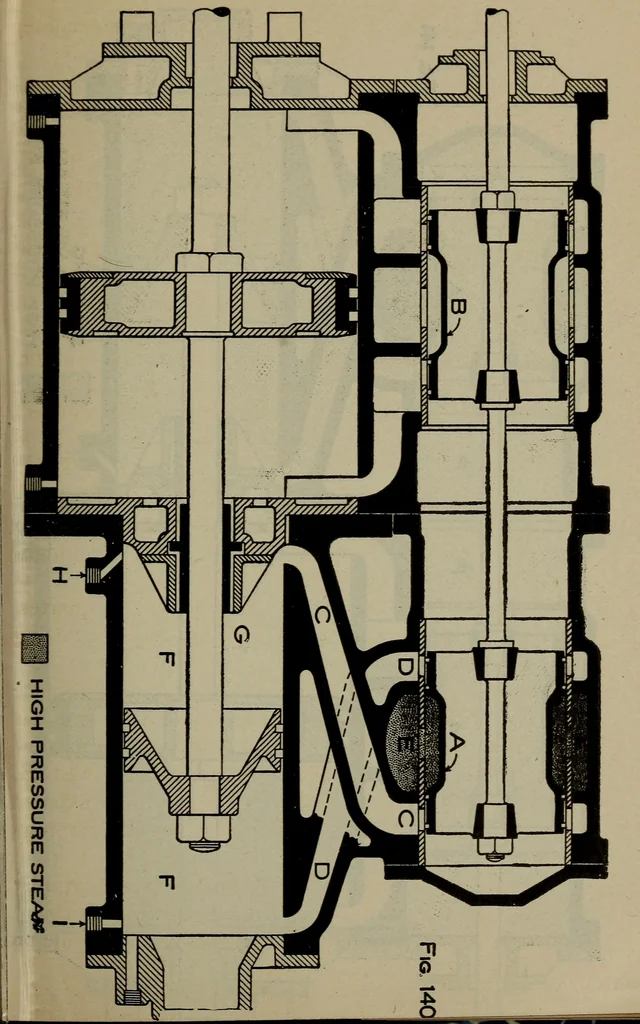

e by-pass valve M in Fig. 145, but replacevalve-cap, which is not shown, as it is bolted to underside of starting valve. This allows steam to flowthrough by-pass from high-pressure steam chest E, jthrough starting valve ports N and O, and past exhaustedges X and Y of high-pressure valve A, into… … 304 LOCOMOTIVE ENGINEERING Sgggpgj
