Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 109

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 109

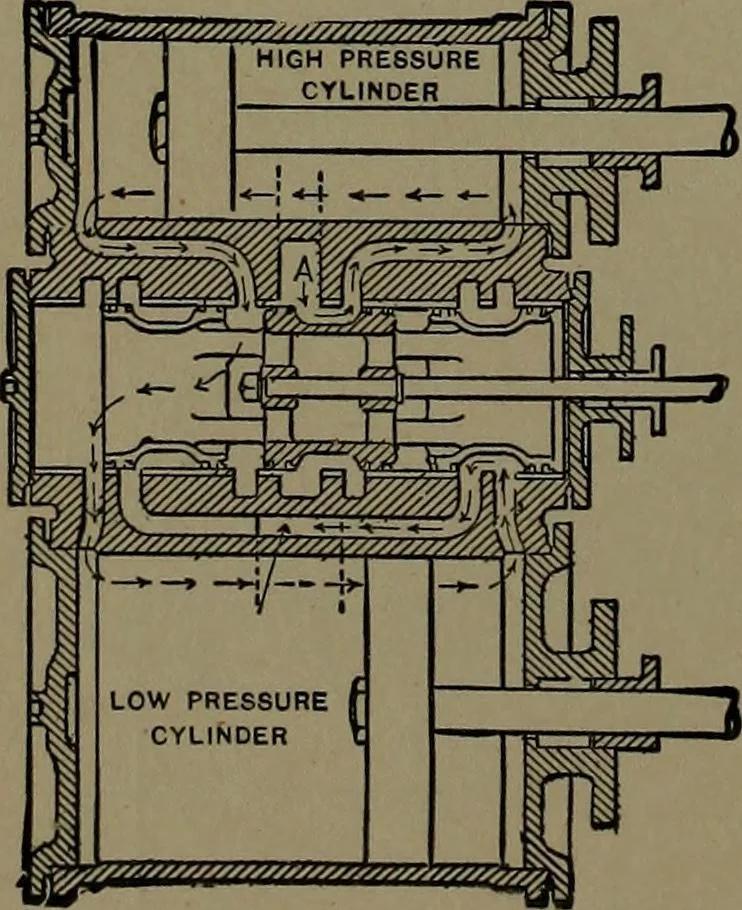

Z7ih. THE WORTHING-TON WATER TUBEBOILER.—The water tubesections are between headersand cross each other in series;the lower ends of the diagonalsections are connected with across pipe for circulation fromthe steam drum. Has theAmerican stoker attached. … 37if. VAUCLAINS COM-POUND LOCOMOTIVECYLINDERS.—A single pis-ton valve for both cylinderswith direct steam passagesthrough the valve chamber.High pressure steam entersat the central port A. Steaminlet and exhaust indicated bythe arrows. Section V.STEAM APPLIANCES. Injectors, Steam Pumps, Condensers,…
