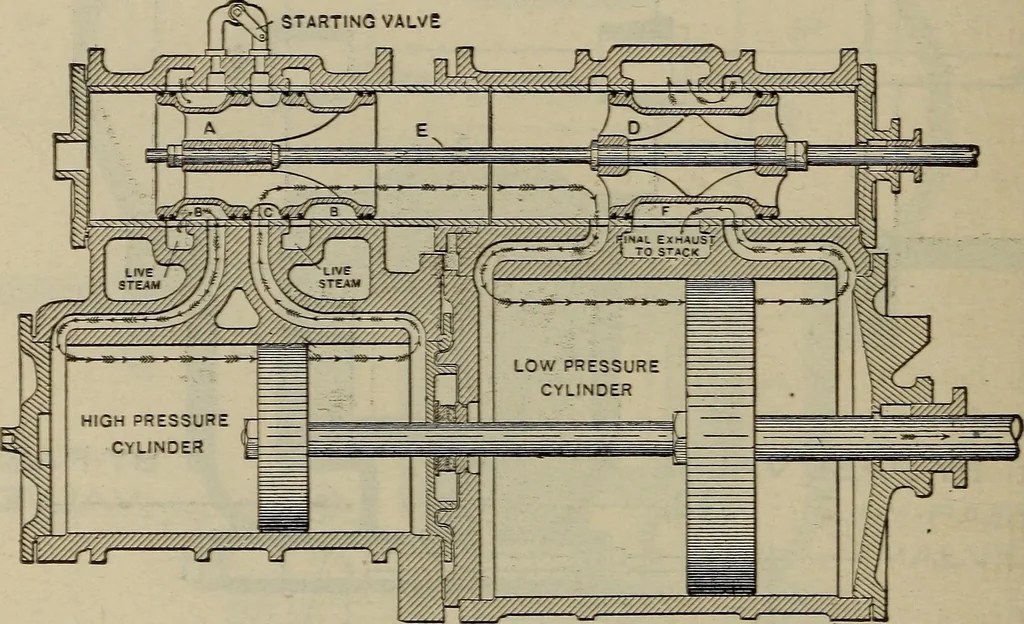

steam port C, to back end of high-pressurecylinder F only. 310 LOCOMOTIVE ENGINEERING If steam now flows from front low-pressure cylindercock L, the piston sleeve G is worn and leaking, Starting Valve in Position for Working Simple, Fig.145 shows section through high-pressure valve, steamchest and… … v//////////^//////////////////y/^////m^ STEAM DISTRIBUTION IN TANDEM COMPOUND CYLINDERS Figure 147 For Fig. 141 test, the starting valve S is in positionas shown in Fig. 145, but having high-pressure valveA on center, by-pass valve M removed. For Fig. 143test, valves A and S are in position as…
