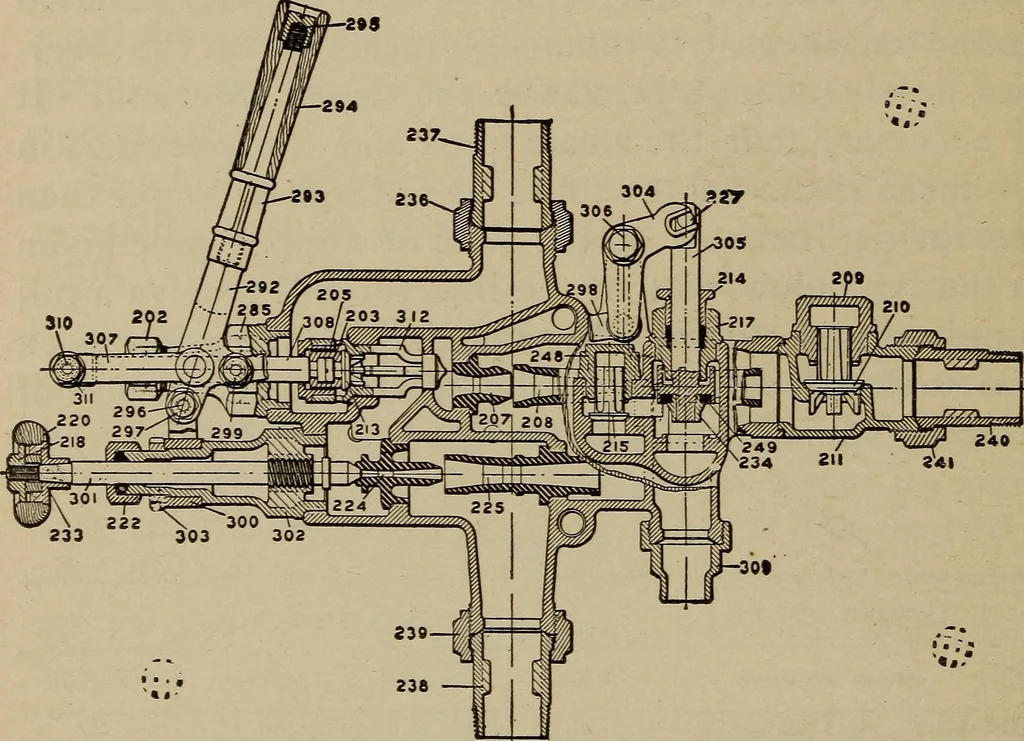

° LOCOMOTIVE ENGINEERING back, lifting the auxiliary steam valve, part 213, fromits seat. This allows steam to flow through the liftingsteam jet, part 224, into the lifting combining tube,part 225, thereby creating a vacuum in the suctionchamber, causing the water to flow through the… … Figure 164Metropolitan 1898 Injector, Sectional View the lever, part 292, opens the steam valve, part 206,which admits steam to the forcing steam jet, part 207,which is condensed by the water which is in the inter-mediate chamber and in the forcing combining tube,part 208, creating a pressure in…
